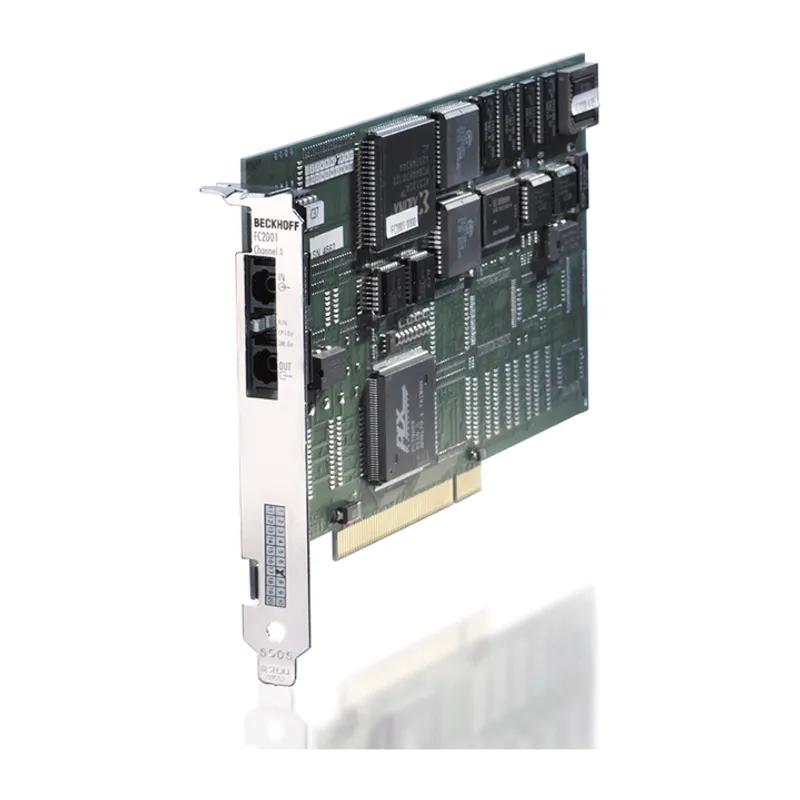

Beckhoff – FC2001 Lightbus master card, 1 channel, PCI™

MPN: FC2001 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original FC2001 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	IPC service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FC2001 now that it is discontinued?

Yes. Beckhoff has discontinued the FC2001, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FC2001 be shipped?

FC2001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FC2001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FC2001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC2001, subject to availability and destination.

The PCI™ Fieldbus Cards from Beckhoff are characterized by outstanding features. They are tailor-made for TwinCAT, the software solution for PC-compatible control technology. The power of TwinCAT comes into its own with this interface generation: – cycle

Beckhoff FC2001 — Lightbus master card, 1 channel, PCI™. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Fieldbus	Lightbus
PC interface	PCI™
Number of channels	1
Data transfer rates	2.5 Mbaud, 32 bit of process data in 25 µs
Bus interface	2 x standard fiber-optic connector Z1000 (plastic fiber), Z1010 (HCS fiber)
NOVRAM	–
Hardware diagnostics	3 LEDs per channel
Driver	TwinCAT 2
Dimensions (W x H x D)	single slot, approx. 106 mm x 187 mm
Operating temperature	0…55°C
