Beckhoff ERI2339-0021

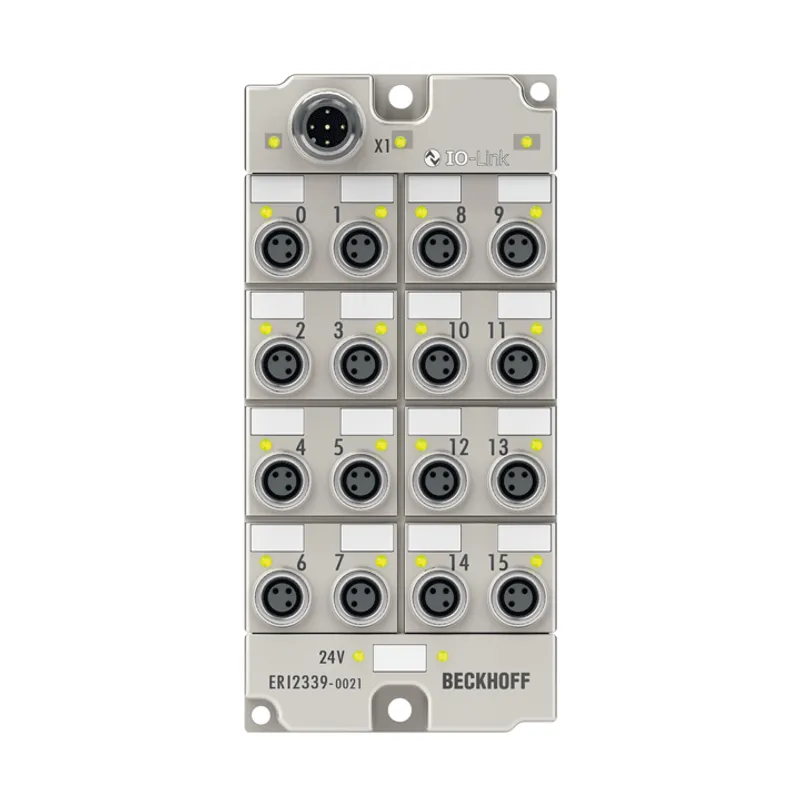

IO-Link box, 16-channel digital combi, 24 V DC, adjustable, 0.5 A, M8, zinc die-cast

MPN: ERI2339-0021
Category: Digital-Kombi ERI23xx

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ERI2339-0021?

The ERI2339-0021 IO-Link box has 16 digital channels, each of which can optionally be operated as an input or as an output. A filter constant of 3.0 ms is available for the inputs. The outputs are short-circuit proof and protected against inverse

Specifications

Communication	IO-Link
Interfaces	1 x M12 plug, A-coded
Data transfer rates	230.4 kbaud (COM 3)
Specification version	IO-Link V1.1, Class B
Number of channels	16 digital inputs or outputs
Input/output connections	M8, screw type
Input filter	3.0 ms (default), adjustable 0…20 ms
“0” signal voltage	-3…+5 V (EN 61131-2, type 3)
“1” signal voltage	11…30 V (EN 61131-2, type 3)
Input current	typ. 3 mA (EN 61131-2, type 3)
Sensor supply	from P24, max 0.5 A, short-circuit proof in total
Load type	ohmic, inductive, lamp load
Rated load voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A per channel, from P24, individually short-circuit proof, ∑ 4 A
Short-circuit current	max. 1.5 A
Current consumption	typ. 100 mA from L+
Auxiliary power current	typ. 20 mA + load
Electrical isolation	L+/P24: yes
Weight	approx. 450 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings	CE, UL
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Dimensions (W x H x D)	60 mm x 126 mm x 26.5 mm
Material	zinc die-cast
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
