Beckhoff ER1018-0002

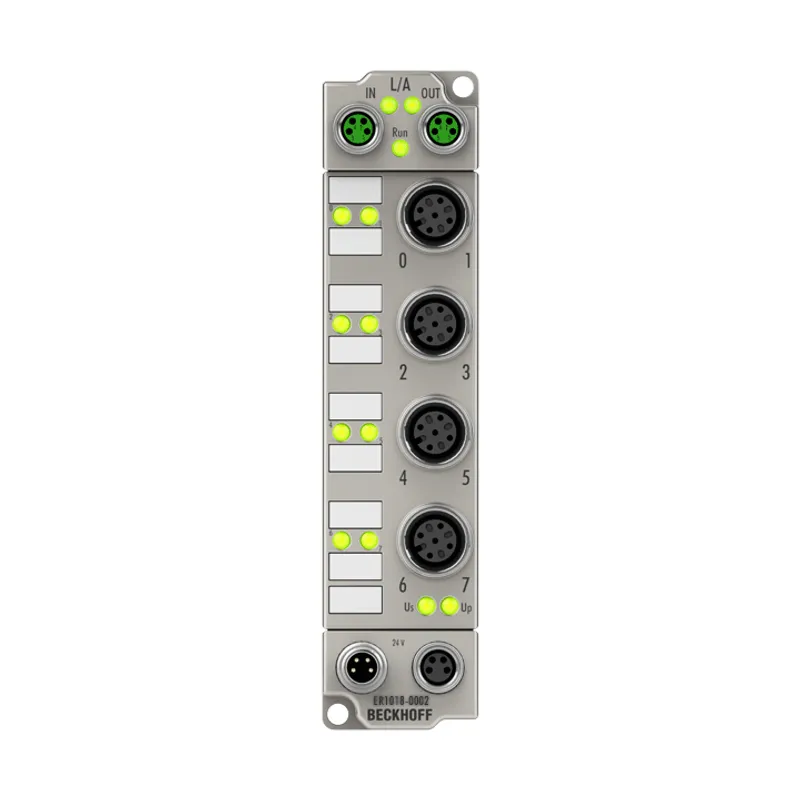

EtherCAT Box, 8-channel digital input, 24 V DC, 10 µs, M12, zinc die-cast

MPN: ER1018-0002
Category: ER1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ER1018-0002?

The ER1018-0002 EtherCAT Box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Specification	EN 61131-2, type 1/3
Number of inputs	8
Input connections	M12 x 1, 5-pin, a-coded
Nominal input voltage	24 V DC (-15%/+20%)
Input filter	10 µs
“0” signal voltage	-3…+5 V (EN 61131-2, type 3)
“1” signal voltage	11…30 V (EN 61131-2, type 3)
Input current	typ. 3 mA (EN 61131-2, type 3)
Distributed clocks	–
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Electrical isolation	control voltage/fieldbus: yes
Weight	approx. 265 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	zinc die-cast
Installation	2 fixing holes 3.5 mm diameter for M3
