ER1xxx | Digital input Parts
Beckhoff
ER1098-0001EtherCAT Box, 8-channel digital input, 24 V DC, 10 µs, ground switching, M8, zinc die-cast
Beckhoff
ER1258-0001EtherCAT Box, 8-channel digital input, 24 V DC, 1 µs, M8, timestamp, zinc die-cast
Beckhoff
ER1258-0002EtherCAT Box, 8-channel digital input, 24 V DC, 1 µs, M12, timestamp, zinc die-cast
Beckhoff
ER1518-0002EtherCAT Box, 8-channel digital input, counter, 24 V DC, 1 kHz, M12, zinc die-cast
Compare ER1xxx | Digital input
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Input connections | Input filter | “0” signal voltage | “1” signal voltage | Distributed clocks |
|---|---|---|---|---|---|

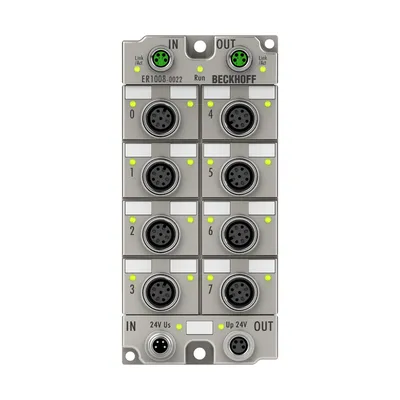

| ER1008-0022 | M12 x 1, 5-pin, A-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | 11…30 V (EN 61131-2, type 3) | – |
| ER1008-0001 | M8 x 1, 3-pin, a-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | 11…30 V (EN 61131-2, type 3) | – |
| ER1008-0002 | M12 x 1, 5-pin, a-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | 11…30 V (EN 61131-2, type 3) | – |

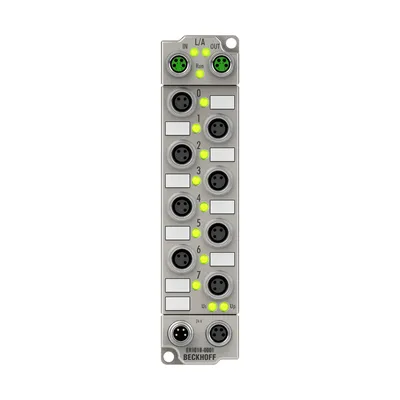

| ER1018-0001 | M8 x 1, 3-pin, a-coded | 10 µs | -3…+5 V (EN 61131-2, type 3) | 11…30 V (EN 61131-2, type 3) | – |
| ER1018-0002 | M12 x 1, 5-pin, a-coded | 10 µs | -3…+5 V (EN 61131-2, type 3) | 11…30 V (EN 61131-2, type 3) | – |
| ER1098-0001 | M8 x 1, 3-pin, a-coded | 10 µs | 11…30 V | 0…7 V | – |
| ER1258-0001 | M8 x 1, 3-pin, a-coded | 10 µs | -3…+5 V (similar to EN 61131-2, type 3) | 11…30 V (similar to EN 61131-2, type 3) | yes |
| ER1258-0002 | M12 x 1, 5-pin, a-coded | 10 µs | -3…+5 V (similar to EN 61131-2, type 3) | 11…30 V (similar to EN 61131-2, type 3) | yes |
| ER1518-0002 | M12 x 1, 5-pin, a-coded | adjustable 0…100 ms | -3…+5 V (EN 61131-2, type 3) | 11…30 V (EN 61131-2, type 3) | yes |

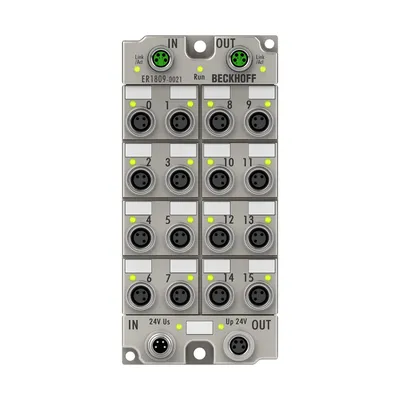

| ER1809-0021 | M8 x 1, 3-pin, a-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | 11…30 V (EN 61131-2, type 3) | – |
| ER1809-0022 | M12 x 1, 5-pin, A-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | 11…30 V (EN 61131-2, type 3) | – |
| ER1819-0021 | M8 x 1, 3-pin, a-coded | 10 µs | -3…+5 V (EN 61131-2, type 3) | 11…30 V (EN 61131-2, type 3) | – |

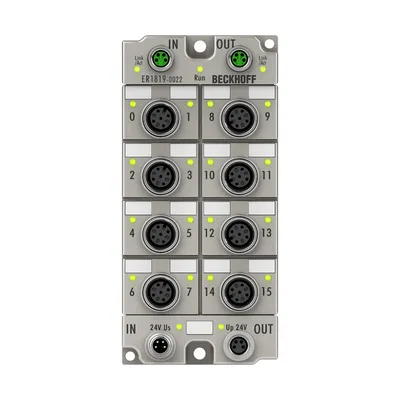

| ER1819-0022 | M12 x 1, 5-pin, A-coded | 10 µs | -3…+5 V (EN 61131-2, type 3) | 11…30 V (EN 61131-2, type 3) | – |
Common to all listed parts
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Nominal input voltage | 24 V DC (-15%/+20%) |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
