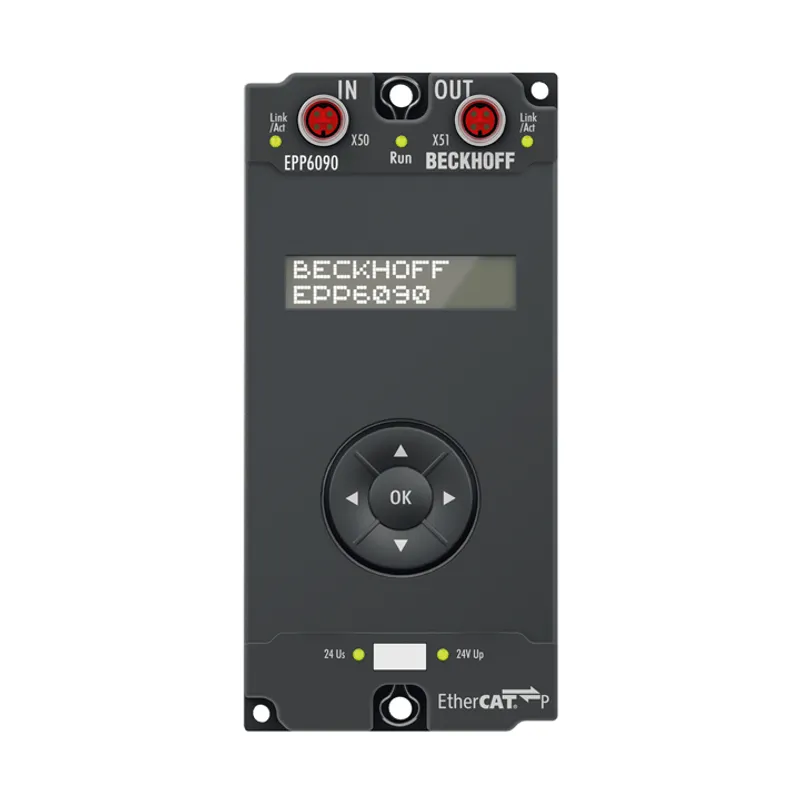

Beckhoff EPP6090-0000
EtherCAT P Box, display with navigation switch, operating hours counter
- MPN
- EPP6090-0000
- Category
- EPP6xxx | Communication
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EPP6090-0000?
The EPP6090-0000 display box has an illuminated, low-reflection LC display with two lines of 16 characters. It can be used, for example, for displaying status messages or diagnostic information. A non-resettable operating hours counter is integrated and
Specifications
Specifications
| Protocol | EtherCAT |
| Technology | EtherCAT P display box |
| Switch inputs | navigation switch: up, down, left, right, OK |
| Display | LC display, 2 x 16 characters (> 16 characters = scrolling text mode), switchable backlight |
| Special characters | 2 characters (5 x 8 pixel matrix) |
| Operating hours counter | 32 bit overflow after 136 years (no reset possible), secure data storage > 100 years (@15 minutes writing interval), accuracy: ±50 ppm |
| Time measuring | 4 x 32 bit second counter (reset possible) |
| Counter | 4 x 32 bit counter (reset possible) |
| Storage interval | manually/automatically every 15 minutes |
| Distributed clocks | – |
| Current consumption from US | typ. 130 mA + sensor supply |
| Weight | approx. 230 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL (in preparation) |
| Dimensions (W x H x D) | 60 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
