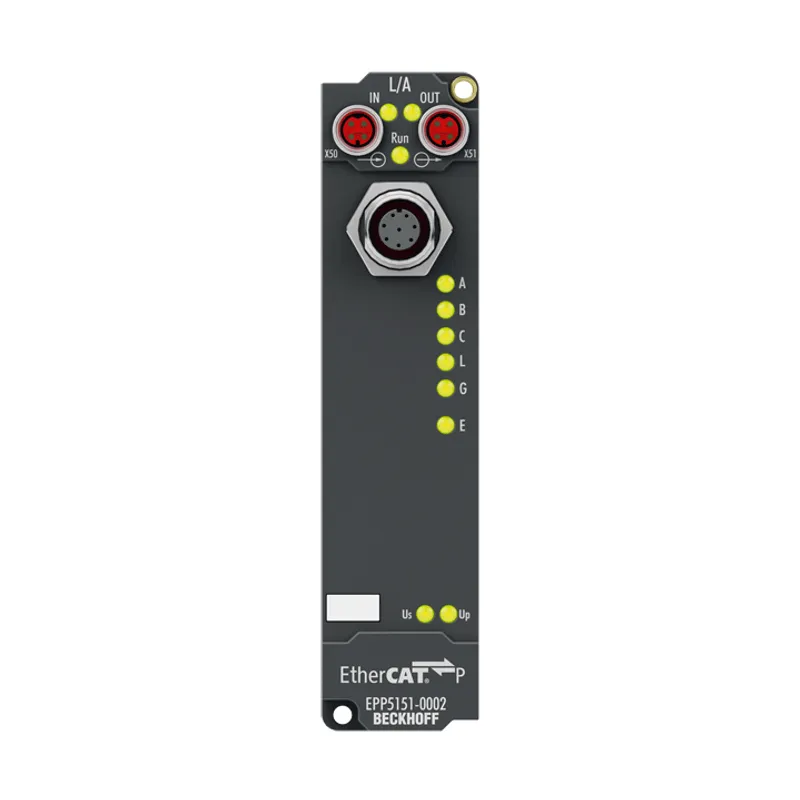

Beckhoff EPP5151-0002
EtherCAT P Box, 1-channel encoder interface, incremental, 24 V DC HTL, 100 kHz, M12
- MPN
- EPP5151-0002
- Category
- EPP5xxx | Position measurement
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EPP5151-0002?
The EPP5151-0002 EtherCAT P Box is an interface to 24 V DC single-ended signals. Two additional 24 V digital inputs are available for saving, locking and setting the counter value. The fault signal output of an encoder can be connected and evaluated via
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, P-coded, shielded |
| Connection technology | M12 socket, 8-pin |
| Encoder type | incremental encoder |
| Number of channels | 1 |
| Encoder connection | 1 x A, B, C: 24 V DC, single-ended connection, EN 61131-2, type 1, “0”: 5 V DC, “1”: > 15 V DC, typ. 5 mA |
| Encoder operating voltage | 24 V DC/0.5 A (generated from US) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Input signal | 24 V DC, single-ended |
| Counter | 1 x 16/32 bit switchable |
| Limit frequency | 400,000 increments/s (with 4-fold evaluation), corresponding to 100 kHz |
| Quadrature decoder | 4-fold evaluation |
| Zero-pulse latch | 1 x 16/32 bit switchable |
| Commands | read, set, enable |
| Distributed clocks | yes |
| Current consumption from US | typ. 100 mA |
| Electrical isolation | 500 V |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Approvals/markings | CE, UL |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
