Beckhoff EP3754-0002

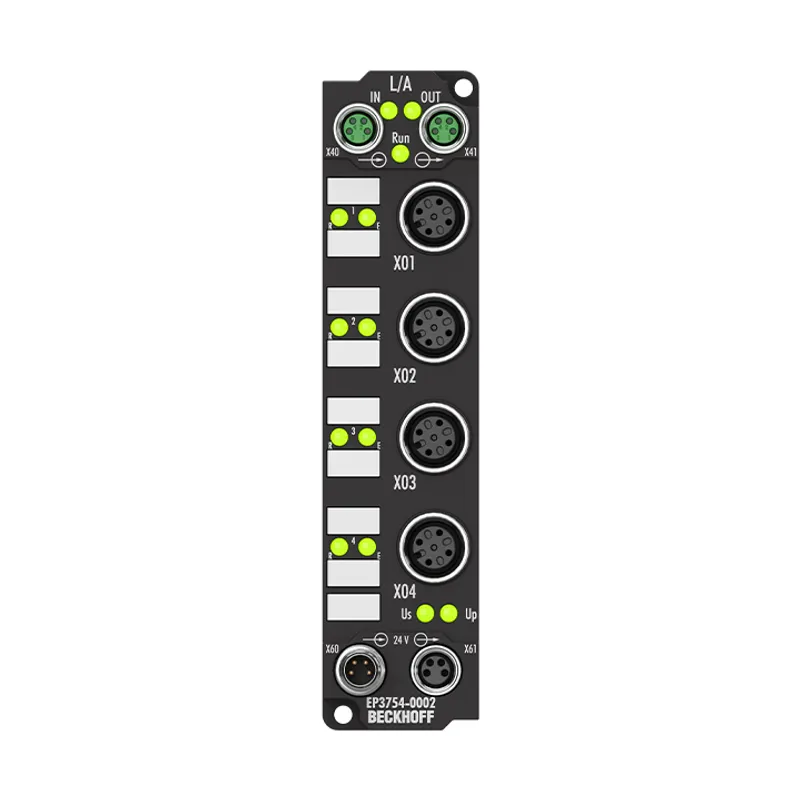

EtherCAT Box, 4-channel analog input, multi-function, M12

MPN: EP3754-0002
Category: EP3xxx | Analog input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EP3754-0002?

The EP3754-0002 EtherCAT Box has four analog multifunctional inputs, which can be extensively parameterized on an individual basis: – voltage measurement: ±10 V, 0…10 V, 0…5 V – current measurement: ±20 mA, 4…20 mA, 0…20 mA – resistance measurement: 0…5

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Number of inputs	4
Input connections	M12 x 1, 5-pin, a-coded
Conversion time	~ 100 µs
Resolution	16 bit (incl. sign)
Sensor types	analog sensors, thermocouple: type B, C, E, J, K, L, N, R, S, T, U, mV measurement, temperature: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…1.2/4 kΩ)
Signal type	-10/0...+10 V \| -20mA/0/4...20 mA, RTD/Pt100/Pt1000, ±30/±60/±75 mV (thermocouple), parameterizable per channel
Common-mode voltage UCM	max. 15 V
Internal resistance	> 200 kΩ \| typ. 85 Ω + diode voltage
Measurement error/uncertainty	±0.3% (relative to full scale value)
Input filter limit frequency	5 kHz
Nominal voltage	24 V DC (-15%/+20%)
Distributed clocks	no
Input filter	configurable
Sensor supply	from load supply voltage UP
Current consumption from US	120 mA
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Electrical isolation	500 V
Special features	multi-function, parameterizable
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
