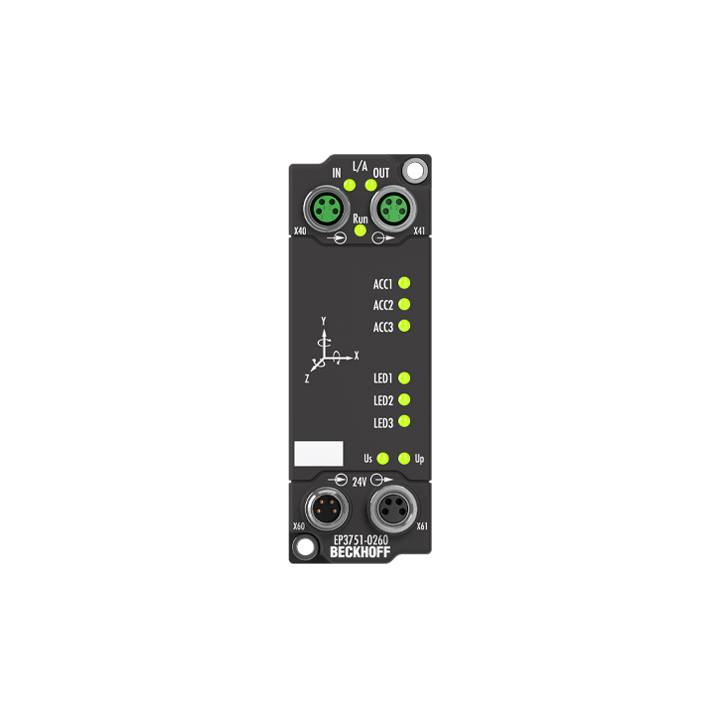

EtherCAT Box, 1-channel, 1 x 3-axis accelerometer, 1 x 3-axis gyroscope
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EP3xxx | Analog input |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EP3751-0260 be shipped?
EP3751-0260 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EP3751-0260 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EP3751-0260 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EP3751-0260, subject to availability and destination.
The EP3751-0260 EtherCAT Box module has an internal 6-axis MEMS sensor for measuring movements. The box module combines a 3-axis acceleration sensor and 3-axis gyroscope sensor that record acceleration and rotational movement in a very compact unit. This
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of inputs | 1 x 3 axis acceleration + 3 axis angular speed |
| Input connections | internal sensors |
| Sensors | MEMS 6 axis IMU |
| Resolution | 16 bit (incl. sign) |
| Measuring range | ±2…16 g, ±15.625…2000 dps |
| Sampling rate | 4 Hz…4 kHz |
| Noise | typ. 70 μg/√Hz, 0.2°/√h angular error (ARW) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Distributed clocks | yes |
| Sensor supply | from control voltage US |
| Current consumption from US | typ. 100 mA |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Electrical isolation | 500 V |
| Special features | extended filter options, oversampling, temperature compensation |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 30 mm x 86 mm x 22 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
