Beckhoff EP2809-0042

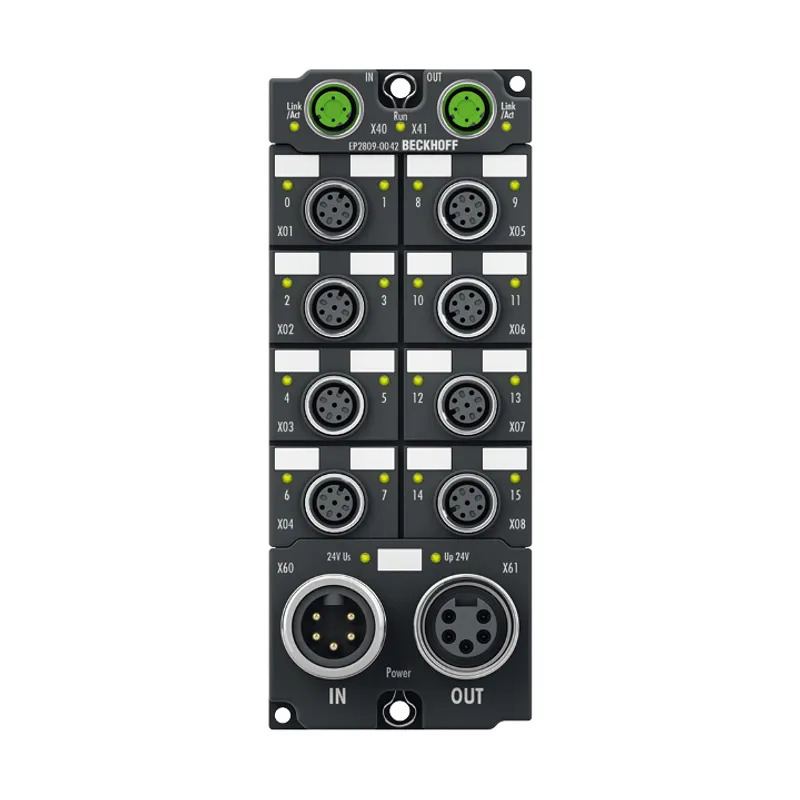

EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M12

MPN: EP2809-0042
Category: EP2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP2809-0042?

The EP2809-0042 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the actuators at the process level. The outputs process an output current of up to max. 0.5 A. A

Specifications

Protocol	EtherCAT
Bus interface	2 x M12 socket, 4-pin, D-coded
Number of outputs	16
Output connections	M12 x 1, 5-pin, a-coded
Ohmic switching current	–
Minimum permitted load	–
Load type	ohmic, inductive, lamp load
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A per channel, individually short-circuit proof, ∑ 16 A
Switching times	typ. TON: 60 µs, typ. TOFF: 300 µs
Short-circuit current	typ. 1.9 A
Distributed clocks	–
Current consumption from US	typ. 130 mA
Auxiliary power current	typ. 20 mA + load
Power supply connection	feed: 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin
Operating cycles mech. (min.)	–
Operating cycles electr. (min.)	–
Electrical isolation	500 V
Weight	approx. 440 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL (in preparation)
Dimensions (W x H x D)	60 mm x 150 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
