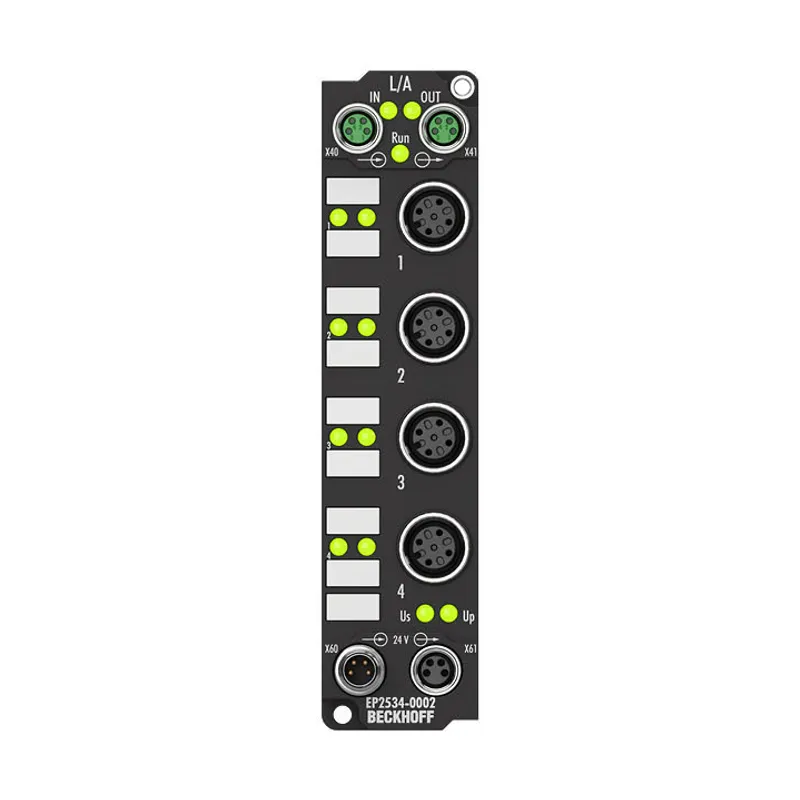

Beckhoff EP2534-0002

EtherCAT Box, 4-channel PWM output, 24 V DC, 2 A, M12, current-controlled

MPN: EP2534-0002
Category: EP2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP2534-0002?

The EP2534-0002 EtherCAT Box regulates the output current by pulse width control of the peripheral voltage on four channels. The current values ranging from 0 to a maximum output current of 2 A are specified by the automation device through a 16-bit

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Number of outputs	4
Output connections	M12 x 1, 5-pin, a-coded
Load type	inductive > 1 mH
Max. output current	2 A per channel, ∑ 4 A
Short-circuit current	typ. 4 A
PWM clock frequency	30 kHz default
Distributed clocks	–
Current consumption from US	typ. 130 mA
Auxiliary power current	typ. 20 mA + load
Duty factor	0…100% (current-controlled)
Resolution	10 bit
Reverse voltage protection	yes
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Electrical isolation	500 V
Special features	1 output per M12 connector, PWM current controlled
Weight	approx. 165 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
