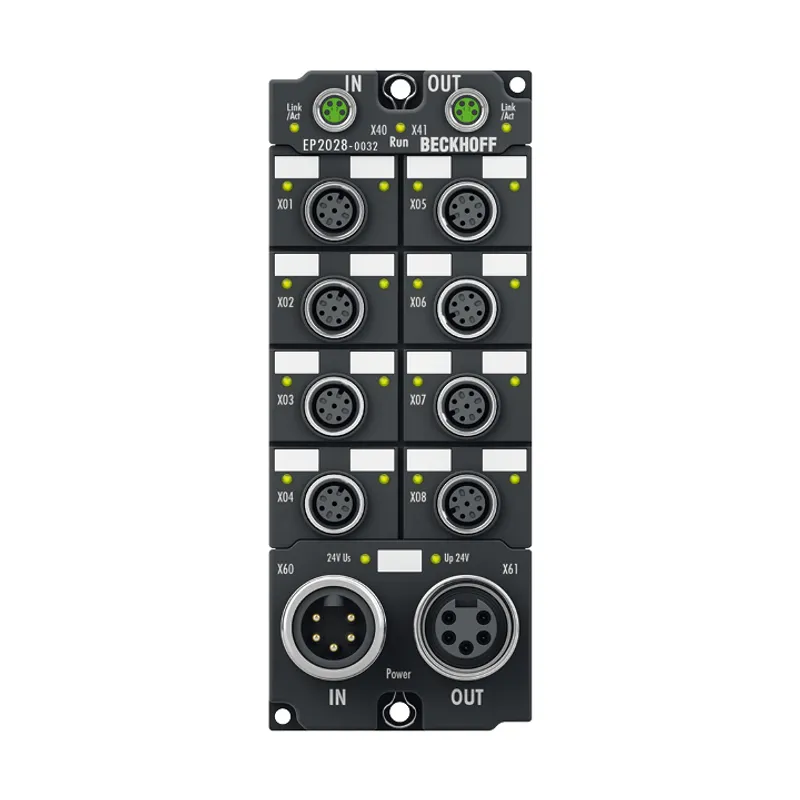

Beckhoff EP2028-0032

EtherCAT Box, 8-channel digital output, 24 V DC, 2.8 A, M12

MPN: EP2028-0032
Category: EP2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP2028-0032?

The EP2028-0032 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the actuators at the process level. The outputs process an output current of up to max. 2.8 A. A

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Number of outputs	8
Output connections	M12 x 1, 5-pin, a-coded
Load type	ohmic, inductive, lamp load
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	2.8 A per channel, individually short-circuit proof, ∑ 16 A
Switching times	typ. TON: 200 µs, typ. TOFF: 200 µs
Short-circuit current	typ. 15 A
Distributed clocks	–
Current consumption from US	typ. 130 mA
Auxiliary power current	typ. 20 mA + load
Power supply connection	feed: 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin
Electrical isolation	500 V
Special features	1 output per M12 plug, ∑ 16 A
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL (in preparation)
Dimensions (W x H x D)	60 mm x 150 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
