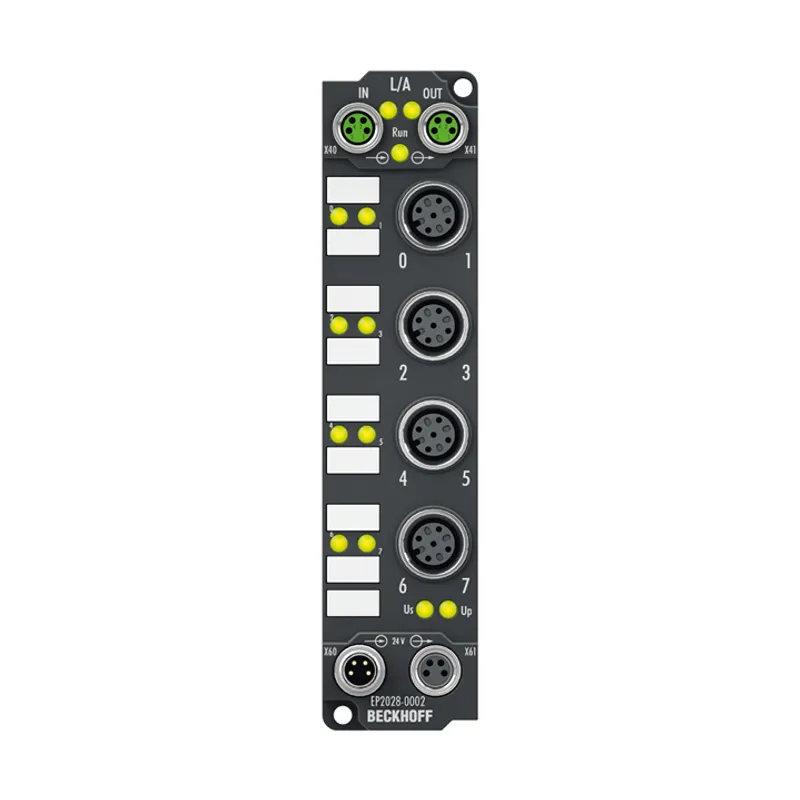

Beckhoff EP2028-0002

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12

MPN: EP2028-0002
Category: EP2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP2028-0002?

The EP2028-0002 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the actuators at the process level. The outputs process an output current of up to max. 2.0 A. A

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Number of outputs	8
Output connections	M12 x 1, 5-pin, a-coded
Load type	ohmic, inductive, lamp load
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	2 A per channel, individually short-circuit proof, ∑ 4 A
Switching times	typ. TON: 200 µs, typ. TOFF: 200 µs
Short-circuit current	typ. 15 A
Distributed clocks	–
Current consumption from US	120 mA
Auxiliary power current	typ. 20 mA + load
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Electrical isolation	500 V
Weight	approx. 165 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL, ATEX, IECEx
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc II 3 D Ex tc IIIC T135 °C Dc IECEx: Ex ec IIC T4 Gc Ex tc IIIC T135 °C Dc
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
