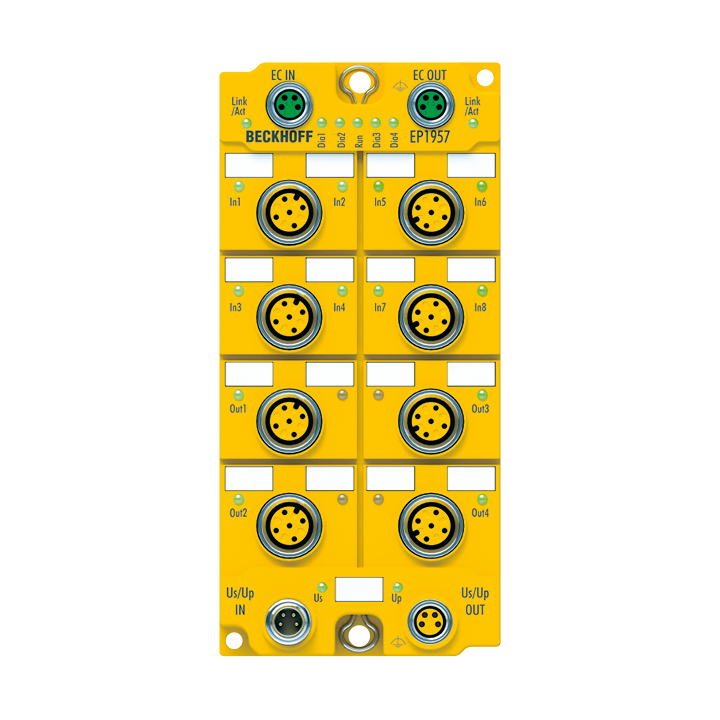

Beckhoff EP1957-0022

EtherCAT Box, 8-channel digital input + 4-channel digital output, 24 V DC, 0.5 A, M12, TwinSAFE, TwinSAFE Logic

MPN: EP1957-0022
Category: EP1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP1957-0022?

The EP1957-0022 TwinSAFE component provides safe digital outputs in a module with IP67 protection (four outputs for 24 V DC actuators up to 0.5 A). It also has eight fail-safe inputs for sensors with potential-free contacts for 24 V DC. The signals are

Specifications

Protocol	TwinSAFE/Safety over EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Connection technology	M12 socket x 1, 5-pin, a-coded
Specification	link unit between safe input and output signals
Number of inputs	8
Number of outputs	4
Max. output current	0.5 A
Cycle time	approx. 1 ms/according to project size
Fault response time	≤ watchdog time (parameterizable)
Current consumption from US/UP	max. 120 mA/max. 60 mA
Installation position	variable
Weight	approx. 315 g
Protection rating	IP67 (according to EN 60529)
Safety standard	EN ISO 13849-1:2015 (Cat. 4, PL e) and EN 61508:2010 (SIL 3)
Dimensions (W x H x D)	60 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
