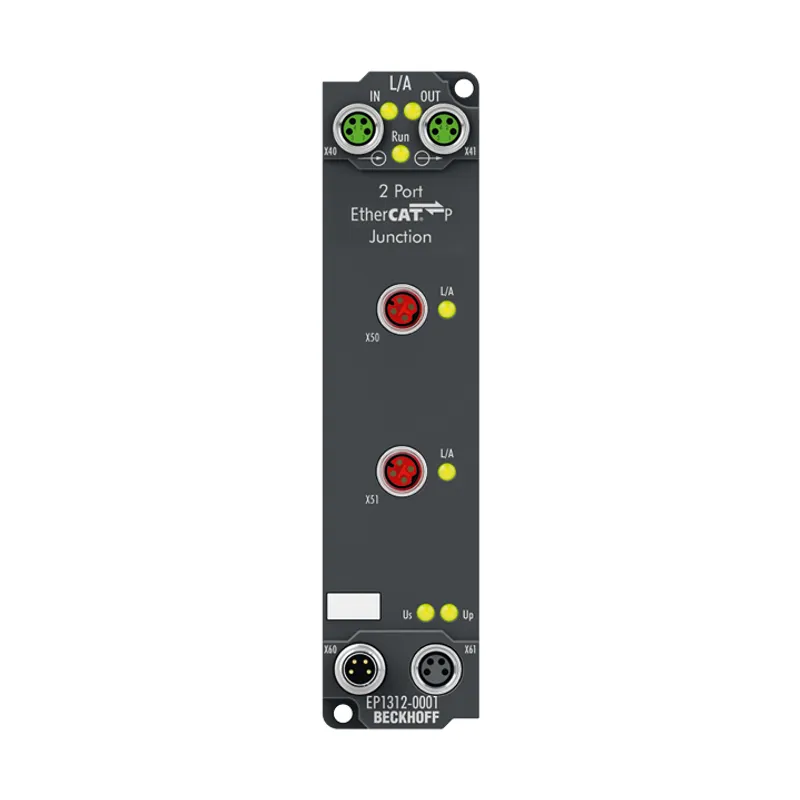

Beckhoff EP1312-0001

EtherCAT Box, 2-port junction, EtherCAT P, M8

MPN: EP1312-0001
Category: EPxxxx | System

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP1312-0001?

The 2-port EtherCAT P junction enables configuration of EtherCAT P topologies from an EtherCAT system. A modular EtherCAT P star can be realized by using several EP1312-0001 in series. Individual devices or complete EtherCAT P strands can be connected at

Specifications

Bus interface	2 x M8 socket, shielded, 2 x P-coded M8 socket
Task within EtherCAT system	coupling of EtherCAT P junctions
Number of channels	IN: 1 x EtherCAT, OUT: 1 x EtherCAT, 2 x EtherCAT P
Nominal voltage	24 V DC (-15%/+20%)
Sum current	max. 3 A per US and UP for all EtherCAT P ports in total
Current consumption from US	typ. 120 mA
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Weight	approx. 165 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
