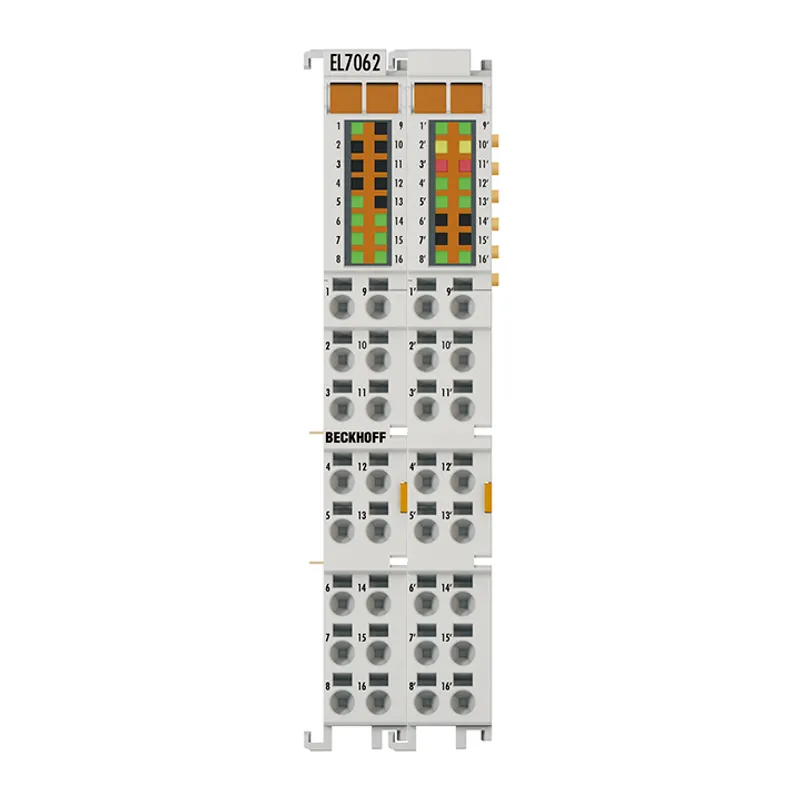

EL7037EtherCAT Terminal, 1-channel motion interface, stepper motor, 24 V DC, 1.5 A, with incremental encoder
Beckhoff EL7062
EtherCAT Terminal, 2-channel motion interface, stepper motor, 48 V DC, 3 A, with incremental encoder, 5 V DC
- MPN
- EL7062
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EL7062?
The EL7062 EtherCAT Terminal is intended for the direct connection of two stepper motors in the mid power range up to 3 A and a voltage range from 8…48 V. The compact stepper motor output stage is accommodated in the EtherCAT Terminal together with two
Specifications
Specifications
| Technology | compact drive technology |
| Connection method | direct motor connection + feedback |
| Number of inputs | 2 latch inputs, 2 x encoder |
| Load type | 2-phase stepper motor (uni-/bipolar) |
| Number of outputs | 2 x stepper motor |
| Supply voltage electronics | 24 V DC (via power contacts) |
| Supply voltage power | 8…48 V DC (external) |
| Output current | max. 6 A sum current, max. 5 A per channel |
| Performance increase | yes, through ZB8610 fan cartridge |
| Output current with ZB8610 | max. 10 A, max. 6 A per channel |
| Step frequency | configurable up to 16,000 full steps/s |
| Current controller frequency | 32 kHz |
| Encoder input signal | 5 V differential, single-ended/open collector |
| Encoder connection | A, B, latch |
| Input frequency | max. 400,000 increments/s (with 4-fold evaluation) |
| Current consumption power contacts | typ. 25 mA + brake output current + encoder supply |
| Current consumption E-bus | typ. 175 mA |
| Distributed clocks | yes |
| Special features | travel distance control, encoder |
| Electrical isolation | 500 V (E-bus/field potential) |
| Relative humidity | 95%, no condensation |
| Weight | approx. 100 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE, UL |
| Design form | HD (High Density) housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…1.5 mm², st*: 0.25…1.5 mm², f*: 0.14…0.75 mm² |
| Connection cross-section AWG | s*: AWG28…16, st*: AWG22…16, f*: AWG26…19 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 24 mm x 100 mm x 68 mm |
