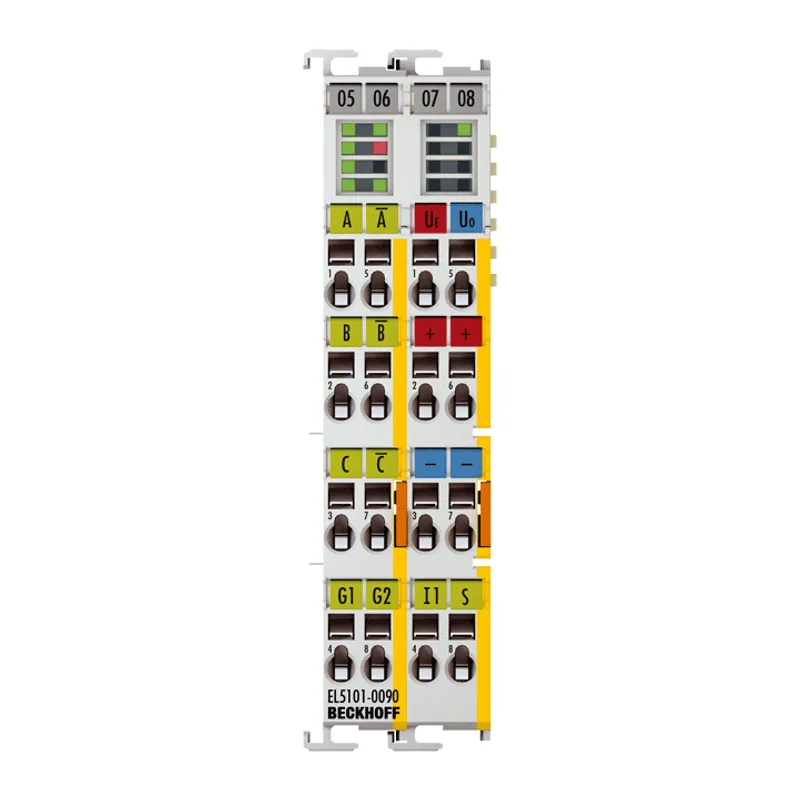

EtherCAT Terminal, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz, TwinSAFE SC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EL5xxx | Position measurement |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EL5101-0090 be shipped?
EL5101-0090 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EL5101-0090 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EL5101-0090 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EL5101-0090, subject to availability and destination.
The EL5101-0090 EtherCAT Terminal is an interface for the direct connection of incremental encoders with differential signals (RS422) or TTL single ended signals. Two additional 24 V digital inputs are available for storing, blocking and setting the
Specifications
Specifications
| Technology | incremental encoder interface, differential (RS422), single-ended (TTL), counter, pulse generator |
| Number of channels | 1 |
| Encoder connection | 1 x A, B, C: differential inputs (RS422): A, A̅ (inv), B, B̅ (inv), C,C̅ (inv), single-ended connection (TTL): A, B, C, counter, pulse generator: A, B |
| Additional inputs | status input 5 V DC, gate/latch input 24 V DC |
| Encoder operating voltage | 5 V DC/max. 0.5 A (generated from the 24 V DC power contacts) |
| Counter | 1 x 16/32 bit switchable |
| Limit frequency | 4 million increments/s (with 4-fold evaluation), corresponding to 1 MHz |
| Quadrature decoder | 4-fold evaluation |
| Distributed clocks | yes |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Resolution | 1/256 bit microincrements |
| Current consumption power contacts | typ. 100 mA + load |
| Current consumption E-bus | typ. 130 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Special features | TwinSAFE SC, wire breakage detection, latch and gate function, period duration and frequency measurement, microincrements, timestamping of edges, filters |
| Weight | approx. 100 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 24 mm x 100 mm x 68 mm |
