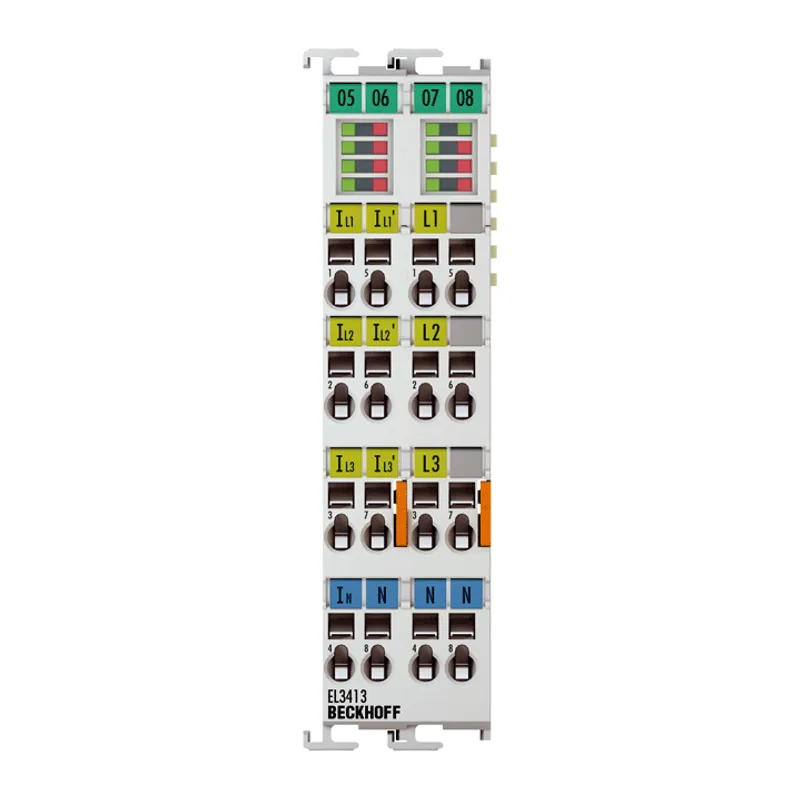

Home / Beckhoff / EL3xxx | Analog input / EL3413-0120 EtherCAT Terminal, 3-channel analog input, power measurement, 120 V AC, 1/5 A, 16 bit, electrically isolated

Available on request

Beckhoff – EL3413-0120 EtherCAT Terminal, 3-channel analog input, power measurement, 120 V AC, 1/5 A, 16 bit, electrically isolated

MPN: EL3413-0120 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original EL3413-0120 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	EL3xxx \| Analog input
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the EL3413-0120 now that it is discontinued?

Yes. Beckhoff has discontinued the EL3413-0120, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can EL3413-0120 be shipped?

EL3413-0120 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EL3413-0120 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EL3413-0120 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EL3413-0120, subject to availability and destination.

The EL3413-0120 EtherCAT power measurement terminal is a further development of the EL3403. With up to 210 V AC the voltage inputs are optimized for direct monitoring of high-performance generators, as used in the wind power industry, for example. No

Beckhoff EL3413-0120 — EtherCAT Terminal, 3-channel analog input, power measurement, 120 V AC, 1/5 A, 16 bit, electrically isolated. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Number of inputs	4 x current, 3 x voltage
Technology	3-phase power measurement for alternating voltages
Signal type	single-ended
Wiring	2-wire
Ground reference (input)	single-ended, electrically isolated channel/channel
Oversampling factor	–
Distributed clocks	–
Conversion time	mains-synchronous
Measured values	current (I1, I2, I3, In), voltage, effective power, reactive power, apparent power, energy, cos φ, frequency, harmonic
Measuring voltage	210 V AC 3~ (ULx-N: max. 120 V AC)
Measuring current	adjustable, 100 mA AC, 1 A AC (default), 5 A AC; potential-free
Resolution	1 μA, 0.1 mV, 10 mW
Measurement error/uncertainty	0.5% relative to full scale value (U/I), 1% calculated value
Electrical isolation	4500 V
Current consumption E-bus	typ. 160 mA
Current consumption power contacts	–
Special features	galvanically isolated current inputs, harmonic analysis, optional single-phase operation
Weight	approx. 100 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE
