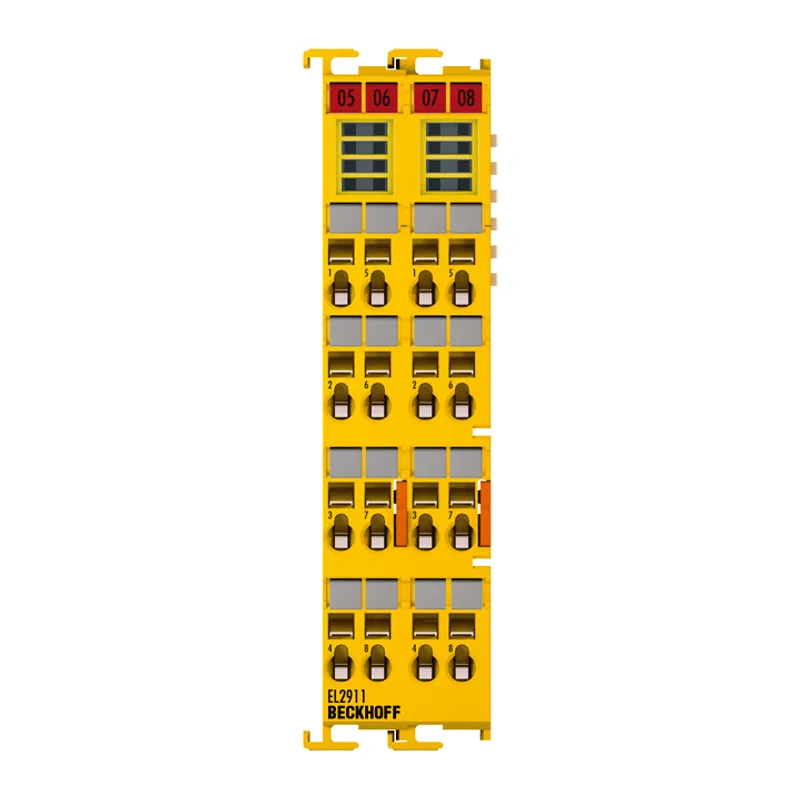

Beckhoff EL2911

EtherCAT Terminal, 4-channel digital input + 1-channel digital output, 24 V DC, 10 A, TwinSAFE, TwinSAFE Logic

MPN: EL2911
Category: EL2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EL2911?

The EL2911 TwinSAFE component is a potential supply terminal and enables the setup of TwinSAFE groups with a safe power supply (24 V DC, up to 10 A). If the TwinSAFE terminal detects an error, it switches to the safe state (fail-safe). Safe potential

Specifications

Connection technology	1-/2-wire and/or via power contacts
Specification	link unit between safe input and output signals
Number of outputs	1
Max. output current	10 A
Protocol	TwinSAFE/Safety over EtherCAT
Fault response time	≤ watchdog time (parameterizable)
Current consumption power contacts	load-dependent
Current consumption E-bus	typ. 180 mA
Installation position	horizontal
Safety standard	EN ISO 13849-1:2015 (Cat. 4, PL e) and EN 61508:2010 (SIL 3)
Weight	approx. 98 g
Protection rating	IP20
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	24 mm x 100 mm x 68 mm
