EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, flat-ribbon cable, with diagnostics
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EL2xxx | Digital output |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EL2878-0005 be shipped?
EL2878-0005 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EL2878-0005 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EL2878-0005 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EL2878-0005, subject to availability and destination.

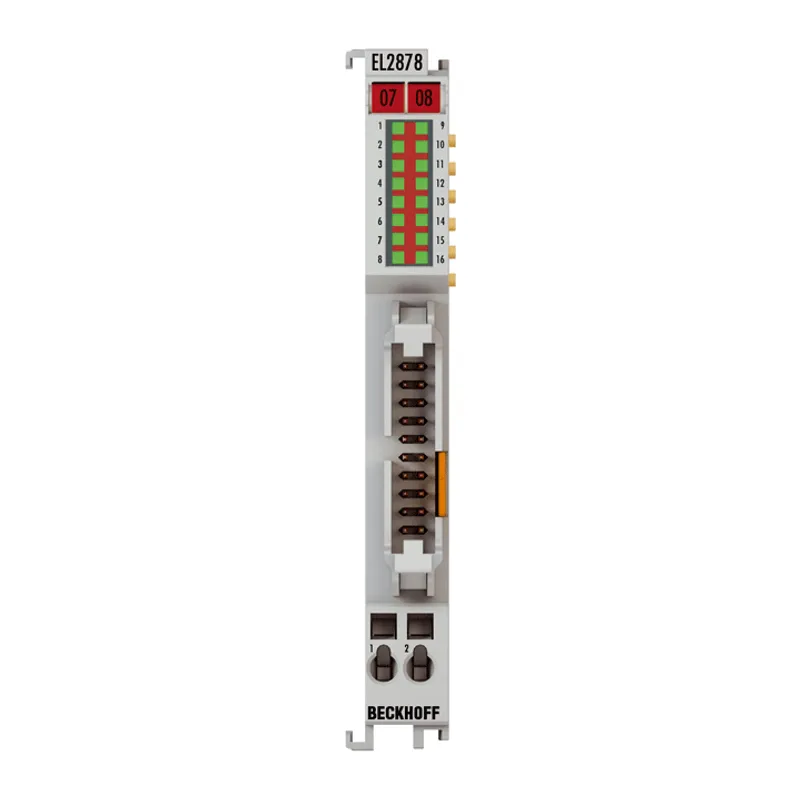

The EL2878-0005 digital output terminal offers a very compact design with its eight channels. A 20-pin contact strip enables the secure connection of plug connectors using insulation displacement contact, as is usual for ribbon cables and special round
Specifications
Specifications
| Connection technology | flat-ribbon cable |
| Number of outputs | 8 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Rated current | max. 1 A per connection pin |
| Load type | ohmic, inductive, lamp load |
| Distributed clocks | – |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Short-circuit current | typ. 2 A |
| Reverse voltage protection | yes |
| Breaking energy | 150 mJ/channel |
| Switching times | typ. TON: 60 µs, typ. TOFF: 300 µs |
| Current consumption E-bus | typ. 100 mA |
| Current consumption power contacts | typ. 20 mA + load from the 24 V supply (no power contacts) |
| Electrical isolation | 500 V (E-bus/field potential) |
| Special features | diagnostics of supply voltage |
| Weight | approx. 55 g |
| Operating temperature | -25…+55°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | flat-ribbon cable connection |
| Connection cross-section | common flat-ribbon cables, AWG28, spacing 1.27 mm |
| Connection cross-section AWG | AWG28 |
| Stripping length | – |
| Dimensions (W x H x D) | 12 mm x 100 mm x 73 mm |
