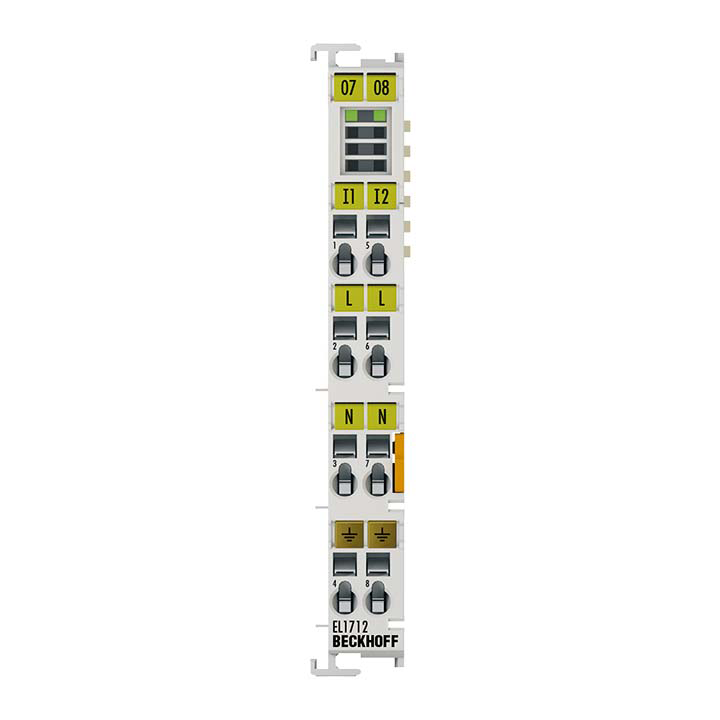

Beckhoff EL1712

EtherCAT Terminal, 2-channel digital input, 120 V AC/DC, 10 ms

MPN: EL1712
Category: EL1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EL1712?

The EL1712 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The direct connection of 120 V DC signals for DC and AC voltage is

Specifications

Connection technology	4-wire
Number of inputs	2
Nominal voltage	120 V AC/DC
“0” signal voltage	0…40 V
“1” signal voltage	79…140 V
Input current	> 3 mA, typ. 6 mA
Input filter	typ. 10 ms
Distributed clocks	–
Current consumption power contacts	–
Switching times	10 ms
Current consumption E-bus	typ. 90 mA
Electrical isolation	500 V (E-bus/mains voltage); 3750 V AC, 1 min.
Configuration	no address or configuration setting
Special features	also suitable for 120 V DC
Weight	approx. 60 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	for all ESxxxx terminals
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
