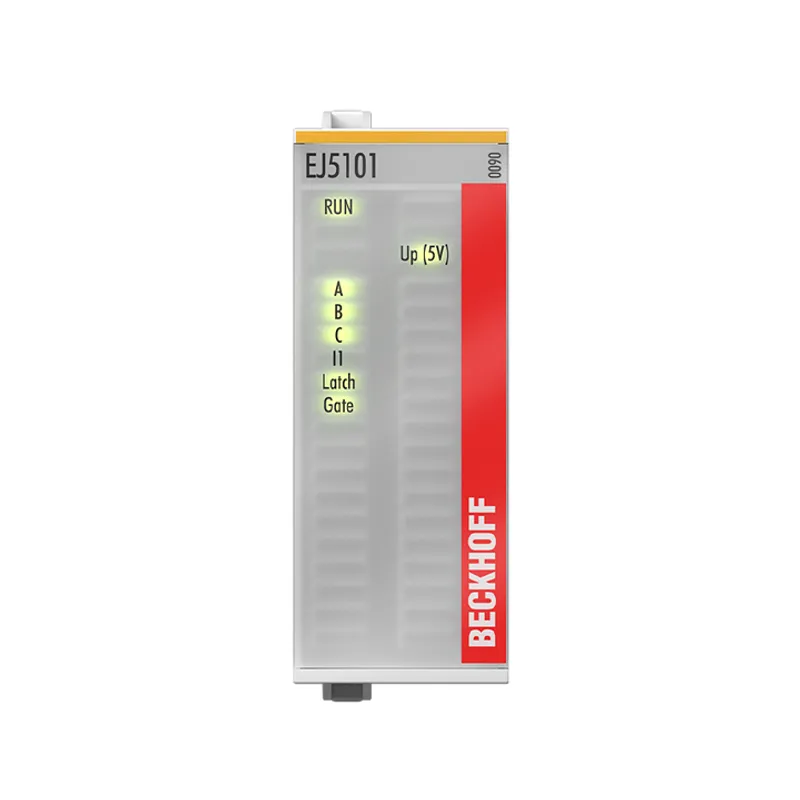

Beckhoff EJ5101-0090
EtherCAT plug-in module, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz, TwinSAFE SC
- MPN
- EJ5101-0090
- Category
- EJ5xxx | Position measurement
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EJ5101-0090?
The EJ5101-0090 EtherCAT plug-in module is an interface for the direct connection of incremental encoders with differential signals (RS422) or TTL single ended signals via the signal distribution board. Two additional 24 V digital inputs are available
Specifications
Specifications
| Technology | incremental encoder interface, differential (RS422), single-ended (TTL), counter, pulse generator |
| Number of channels | 1 |
| Encoder connection | 1 x A, B, C: differential inputs (RS422): A, A (inv), B, B (inv), C, C (inv), single-ended connection (TTL): A, B, C, counter, pulse generator: A, B |
| Additional inputs | status input 5 V DC, gate/latch input 24 V DC |
| Encoder operating voltage | 5 V DC/max. 0.5 A |
| Counter | 1 x 16/32 bit switchable |
| Input frequency | max. 4 million increments/s with 4-fold evaluation, equivalent to 1 MHz |
| Supply voltage electronics | 24 V DC (via signal distribution board) |
| Current consumption | typ. 20 mA + load |
| Current consumption E-bus | typ. 130 mA |
| Resolution | 1/256 bit microincrements |
| Quadrature decoder | 4-fold evaluation |
| Distributed clocks | yes |
| Electrical isolation | 500 V (E-bus/field potential) |
| Special features | TwinSAFE SC, wire breakage detection, latch and gate function, period duration and frequency measurement, microincrements, timestamping of edges, filters |
| Weight | approx. 50 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE |
| Design form | EtherCAT I/O plug-in module |
| Material | polycarbonate |
| Installation | on signal distribution board |
| Mechanical coding | EJ plug-in module: signal-specific coding pins on the housing, signal distribution board: holes in the printed circuit board |
| Position of the coding pins | 2, 5 |
| Locking | latching lug in circuit board cut-out |
| Connection method | field wiring: application-specific wiring level on the signal distribution board, EJ plug-in module: 2 x 20-pin socket strip |
| Dimensions (W x H x D) | 24 mm x 66 mm x 55 mm |
EJ5101-0090: frequently asked questions
When can EJ5101-0090 be shipped?
EJ5101-0090 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EJ5101-0090 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EJ5101-0090 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EJ5101-0090, subject to availability and destination.
