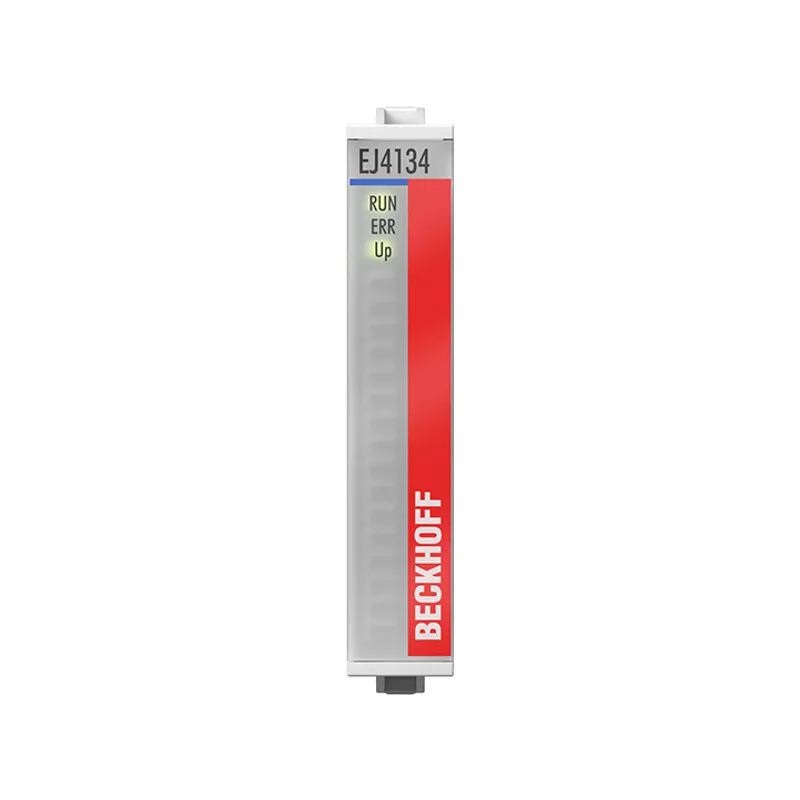

Beckhoff EJ4134

EtherCAT plug-in module, 4-channel analog output, voltage, ±10 V, 16 bit

MPN: EJ4134
Category: EJ4xxx | Analog output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EJ4134?

The EJ4134 EtherCAT plug-in module generates signals in the range between -10 and 10 V. The voltage is supplied to the process level with a resolution of 16 bits and is electrically isolated. The output channels have a common ground potential. The signal

Specifications

Power supply	via the E-bus
Number of outputs	4
Signal voltage	-10…+10 V
Distributed clocks	yes
Distributed clock precision	1 µs
Load	> 5 kΩ (short-circuit proof)
Measurement error/uncertainty	0.1% (relative to full scale value)
Output error	±0.1% (relative to end value)
Resolution	16 bit
Electrical isolation	500 V (E-bus/signal voltage)
Conversion time	~ 200 µs (0…100 %)
Current consumption periphery	–
Auxiliary power current	typ. 40 mA
Current consumption E-bus	typ. 90 mA
Special features	Watchdog parameterizable; user synchronization can be activated.
Weight	approx. 30 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/see documentation
Approvals/markings	CE, UL
Design form	EtherCAT I/O plug-in module
Material	polycarbonate
Installation	on signal distribution board
Mechanical coding	EJ plug-in module: signal-specific coding pins on the housing, signal distribution board: holes in the printed circuit board
Position of the coding pins	1, 7
Locking	latching lug in circuit board cut-out
Connection method	field wiring: application-specific wiring level on the signal distribution board, EJ plug-in module: 2 x 20-pin socket strip
Dimensions (W x H x D)	12 mm x 66 mm x 55 mm
