EJ4xxx | Analog output Parts
Compare EJ4xxx | Analog output
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of outputs | Load | Resolution | Conversion time | Current consumption periphery |
|---|---|---|---|---|---|

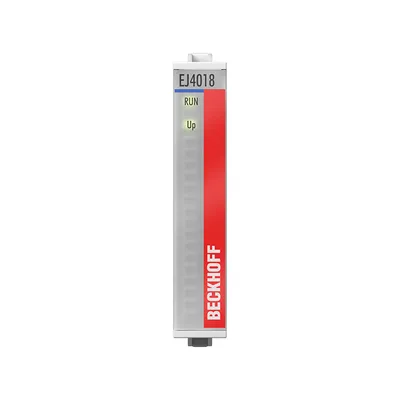

| EJ4018 | 8 | 150 Ω | 12 bit | ~ 400 µs | max. typ. 60 mA |

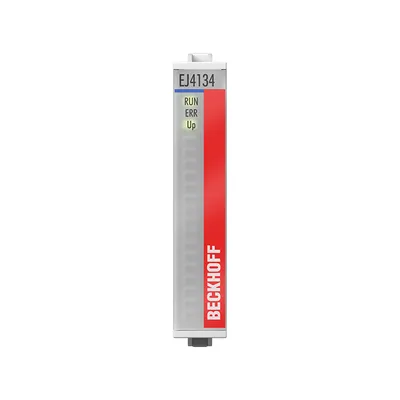

| EJ4134 | 4 | > 5 kΩ (short-circuit proof) | 16 bit | ~ 200 µs (0…100 %) | – |
| EJ4002 | 2 | > 5 kΩ (short-circuit proof) | 12 bit | ~ 150 µs | – |
| EJ4132 | 2 | > 5 kΩ (short-circuit proof) | 16 bit (incl. sign) | ~ 40 µs | – |
| EJ4008 | 8 | > 5 kΩ (short-circuit proof) | 12 bit | ~ 400 µs | – |
| EJ4024 | 4 | 350 Ω (short-circuit proof) | 12 bit | ~ 250 µs | typ. 25 mA |
| EJ4004 | 4 | > 5 kΩ (short-circuit proof) | 12 bit | ~ 400 µs | – |
Common to all listed parts
| Distributed clocks | yes |
| Weight | approx. 30 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/see documentation |
