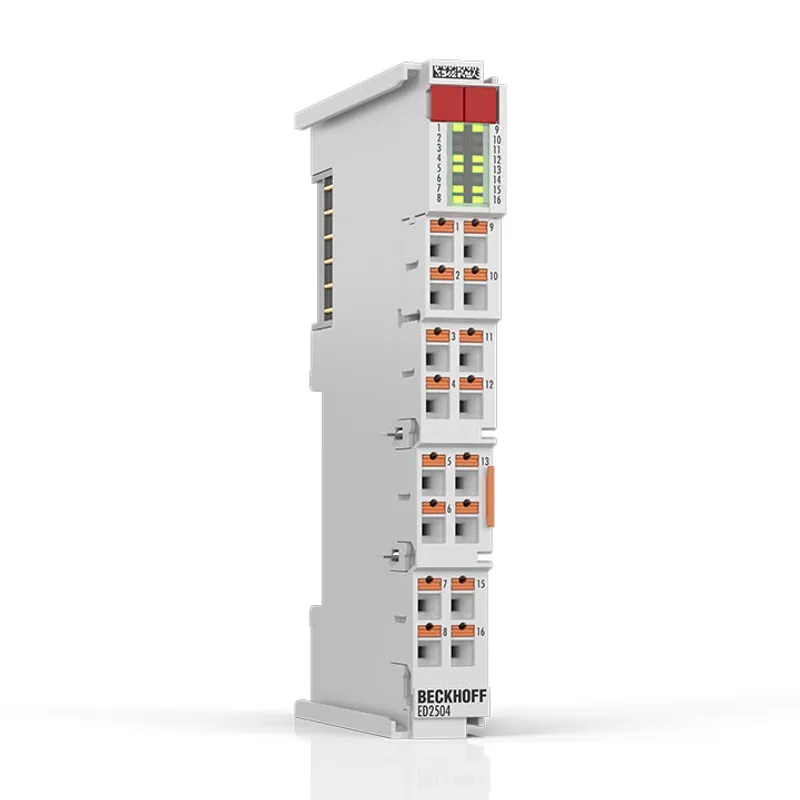

Beckhoff ED2504

EtherCAT Terminal, 4-channel PWM output, 5…24 V DC, 1 A, push-in, with 4 x digital input

MPN: ED2504
Category: EL/ED2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff ED2504?

The ED2504 EtherCAT Terminal offers up to four digital outputs, which are output as pulse-width modulated signals. The output signal can be modulated in both pulse width and frequency in the range of 1 Hz to 64 kHz. The output level is determined by the

Specifications

Number of channels \| Total	max. 8
Internal communication protocol	EtherCAT
Number of channels	max. 4
Load type	ohmic, inductive, lamp load
Signal range \| Technical	5…24 V DC (+20 %) (external supply)
Output current	max. 1 A per channel
Short-circuit proof	yes
Output stage	push-pull
Pulse duration \| TON	typ. > 320 ns
Pulse duration \| TOFF	typ. > 320 ns
Duty factor	0…100%
Resolution	10...16 bit
Output frequency	1 Hz…64 kHz
Reverse voltage protection	yes
Function	digital input, hardware gate, tacho
Connection technology	push-in
“0” signal voltage	2.5…28 V DC
“1” signal voltage	-3…+1 V DC
Input filter	typ. 1 µs, 0.1 ms, 0.5 ms, 1 ms, 3 ms, 10 ms, 20 ms (adjustable)
Input current	typ. 2 mA at 24 V DC
Cable length \| Sensor cable	max. 30 m
Distributed clocks	no
Timestamp	no
Oversampling	no
Electronics \| Supply voltage	via E-bus, via power contacts
E-bus \| Current consumption	typ. 110 mA
Power contacts \| Input voltage	24 V DC (-15%/+20%)
Power contacts \| Current carrying capacity	max. 10 A
Power contacts \| Current consumption	typ. 40 mA + load
Power contacts \| Output voltage	24 V DC (-15%/+20%)
Electrical isolation \| Channel/channel	no
Electrical isolation \| Channel/bus	functional, 707 V DC type test
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Installation position	variable
Vibration resistance	conforms to EN 60068-2-6
Shock resistance	conforms to EN 60068-2-27
EMC immunity	conforms to EN 61000-6-2
EMC emission	conforms to EN 61000-6-4
Markings	CE
Approvals	UL (in preparation)
Weight	60 g
Protection rating	IP20
Material	polycarbonate
Dimesnions \| Width (single)	15 mm
Dimensions \| Width (lined up)	12 mm
Dimensions \| Height	100 mm
Dimensions \| Depth	65 mm
Installation \| Terminal/back wall	DIN rail, 35 mm (EN 60715)
Installation \| Terminal/terminal	double slot and key connection
Plug-in wiring level	no
Connection cross-section \| Solid wire	0.08…1.5 mm²
Connection cross-section \| Stranded wire	0.25…1.5 mm²
Connection cross-section \| With ferrule	0.14…0.75 mm²
Connection cross-section AWG \| Solid wire	AWG28…16
Connection cross-section AWG \| Stranded wire	AWG22…16
Connection cross-section AWG \| With ferrule	AWG26…19
Stripping length	8…9 mm
Power contact \| "+" (left)	yes
Power contact \| "+" (rechts)	yes
Power contact \| "-" (left)	yes
Power contact \| "-" (right)	yes
Power contact \| "⏚" (left)	no
Power contact \| "⏚" (right)	no
Insertion lock for power contact “⏚”	yes
