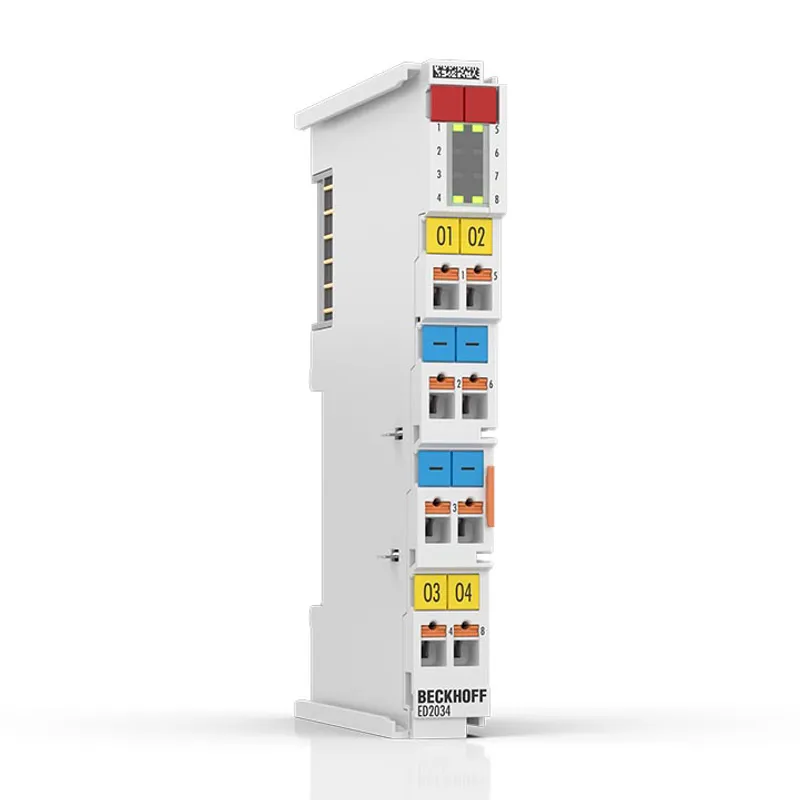

Beckhoff ED2034

EtherCAT Terminal, 4-channel digital output, 24 V DC, 2 A, push-in, with channel diagnostics

MPN: ED2034
Category: EL/ED2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff ED2034?

The ED2034 digital output terminal connects the binary control signals from the automation device on to the actuators at the process level with electrical isolation. The EtherCAT Terminal contains four channels whose signal state is indicated by light

Specifications

Number of channels \| Total	4
Internal communication protocol	EtherCAT
Number of channels	4
Load type	ohmic, inductive, capacitive
Connection technology	push-in
Signal range \| Nominal	24 V DC
Signal range \| Technical	20.4…28.8 V DC
Output current	max. 2 A per channel
Short-circuit proof	yes
Short circuit current limit	typ. 12 A
Output stage	push
Switching times \| TON	typ. 50 µs
Switching times \| TOFF	typ. 140 µs
Reverse voltage protection	ja
Breaking energy \| Inductive	1.3 J per channel
Diagnostics	yes
Overload	yes
Distributed clocks	no
Timestamp	no
Oversampling	no
Electronics \| Supply voltage	via E-bus, via power contacts
E-bus \| Current consumption	typ. 70 mA
Power contacts \| Input voltage	24 V DC (-15%/+20%)
Power contacts \| Current carrying capacity	max. 10 A
Power contacts \| Current consumption	typ. 10 mA + load
Power contacts \| Output voltage	corresponds to Power contacts \| Input voltage
Electrical isolation \| Channel/channel	no
Electrical isolation \| Channel/bus	functional, 707 V DC type test
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Installation position	variable
Vibration resistance	conforms to EN 60068-2-6
Shock resistance	conforms to EN 60068-2-27
EMC immunity	conforms to EN 61000-6-2
EMC emission	conforms to EN 61000-6-4
Markings	CE
Approvals	UL (in preparation)
Weight	55 g
Protection rating	IP20
Material	polycarbonate
Dimesnions \| Width (single)	15 mm
Dimensions \| Width (lined up)	12 mm
Dimensions \| Height	100 mm
Dimensions \| Depth	65 mm
Installation \| Terminal/back wall	DIN rail, 35 mm (EN 60715)
Installation \| Terminal/terminal	double slot and key connection
Plug-in wiring level	no
Connection cross-section \| Solid wire	0.08…2.5 mm²
Connection cross-section \| Stranded wire	0.08…2.5 mm²
Connection cross-section \| With ferrule	0.14…1,5 mm²
Connection cross-section AWG \| Solid wire	AWG28…14
Connection cross-section AWG \| Stranded wire	AWG28…14
Connection cross-section AWG \| With ferrule	AWG26…16
Stripping length	8…9 mm
Power contact \| "+" (left)	yes
Power contact \| "+" (rechts)	yes
Power contact \| "-" (left)	yes
Power contact \| "-" (right)	yes
Power contact \| "⏚" (left)	no
Power contact \| "⏚" (right)	no
Insertion lock for power contact “⏚”	yes
