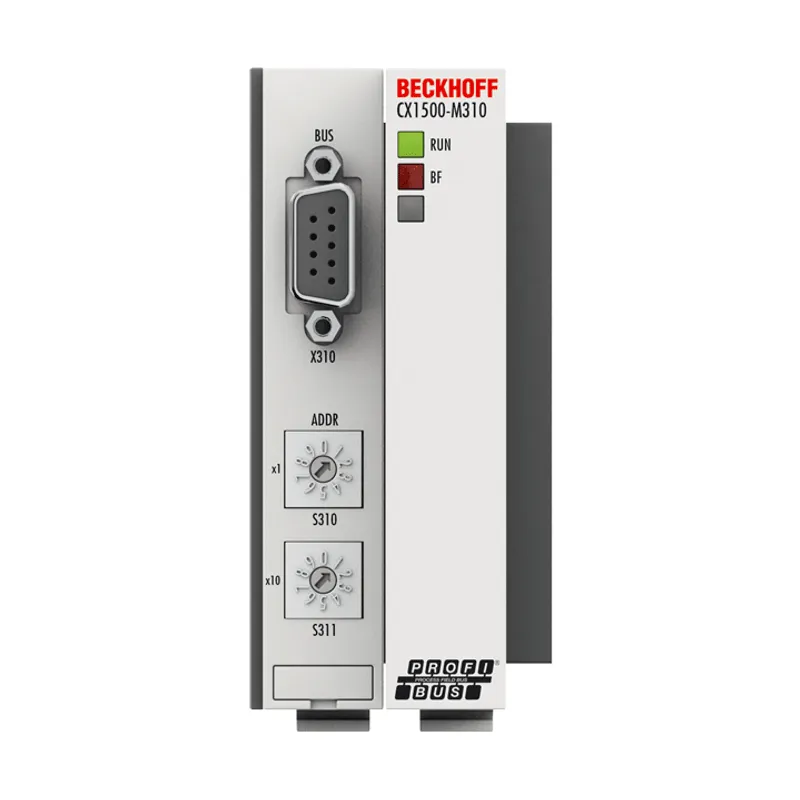

Beckhoff – CX1500-M310 PROFIBUS master fieldbus connection
Discontinued by Beckhoff — we can still source the original CX1500-M310 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IPC service products (discontinued) |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the CX1500-M310 now that it is discontinued?
Yes. Beckhoff has discontinued the CX1500-M310, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can CX1500-M310 be shipped?
CX1500-M310 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CX1500-M310 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CX1500-M310 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX1500-M310, subject to availability and destination.
The CX1500-M310 PROFIBUS fieldbus master enables the distributed collection of process data and signals, even for distant machines or equipment. The use of fieldbus master modules in a CX10x0 system enables the utilization of all Beckhoff fieldbus
Beckhoff CX1500-M310 — PROFIBUS master fieldbus connection. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.
Specifications
Technical data
| Lifecycle | Service phase (discontinued, no longer in Beckhoff's product range) |
| Fieldbus | PROFIBUS DP, DP-V1, DP-V2 (MC) |
| Data transfer rates | 9.6 kbaud…12 Mbaud |
| Bus interface | 1 x D-sub socket, 9-pin |
| Bus device | max. 125 slaves with up to 244 bytes input, output, parameter, configuration or diagnostic data per slave |
| Interface to the CPU | ISA plug-and-play, 2 kbytes DPRAM |
| Max. power loss | 1.8 W |
| Properties | PROFIBUS – different DP cycle times are possible for each slave. The error management for each user is freely configurable. |
| Dimensions (W x H x D) | 38 mm x 100 mm x 91 mm |
| Weight | approx. 190 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Driver | only compatible with TwinCAT 2 |
| Protection rating | IP20 |
| Approvals/markings | CE, UL |
