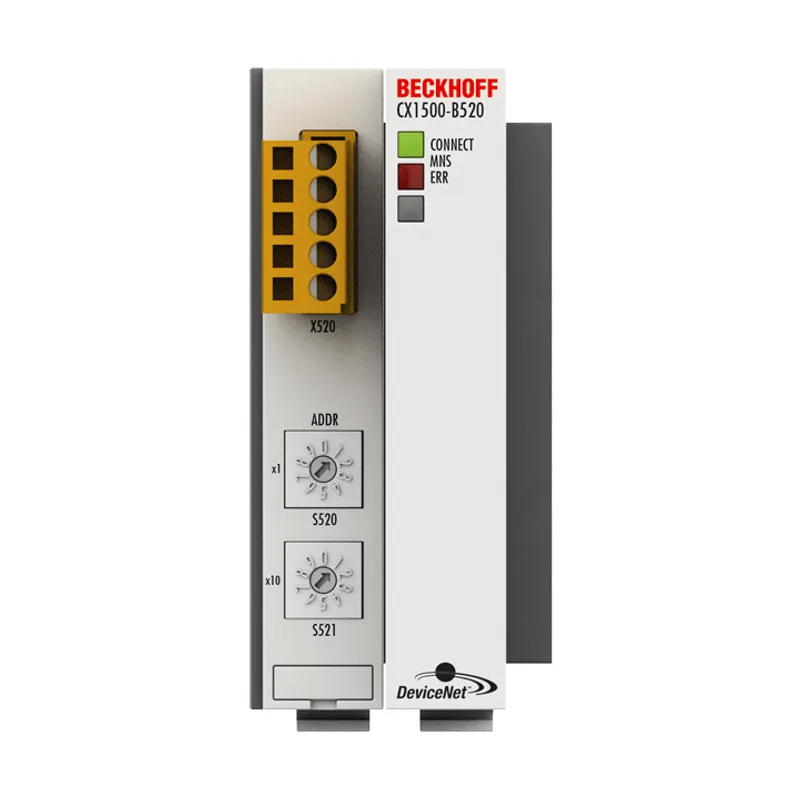

Beckhoff – CX1500-B520 DeviceNet slave fieldbus connection

MPN: CX1500-B520 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original CX1500-B520 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	IPC service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the CX1500-B520 now that it is discontinued?

Yes. Beckhoff has discontinued the CX1500-B520, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can CX1500-B520 be shipped?

CX1500-B520 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CX1500-B520 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CX1500-B520 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX1500-B520, subject to availability and destination.

The CX1500-B520 DeviceNet slave fieldbus connection enables the fieldbus integration of a CX1010/CX1020/CX1030 system as a slave controller that can receive or process data from the master, or send back data from its own process periphery to the master

Beckhoff CX1500-B520 — DeviceNet slave fieldbus connection. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Fieldbus	DeviceNet
Data transfer rates	125, 250, 500 kbaud
Bus interface	open style connector, 5-pin
Bus device	max. 63 slaves
Max. number of bytes	max. 255 byte input/255 byte output
Max. power loss	1.8 W
Dimensions (W x H x D)	38 mm x 100 mm x 91 mm
Weight	approx. 190 g
Operating/storage temperature	0…+55°C/-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Driver	only compatible with TwinCAT 2
Protection rating	IP20
Approvals/markings	CE, UL
