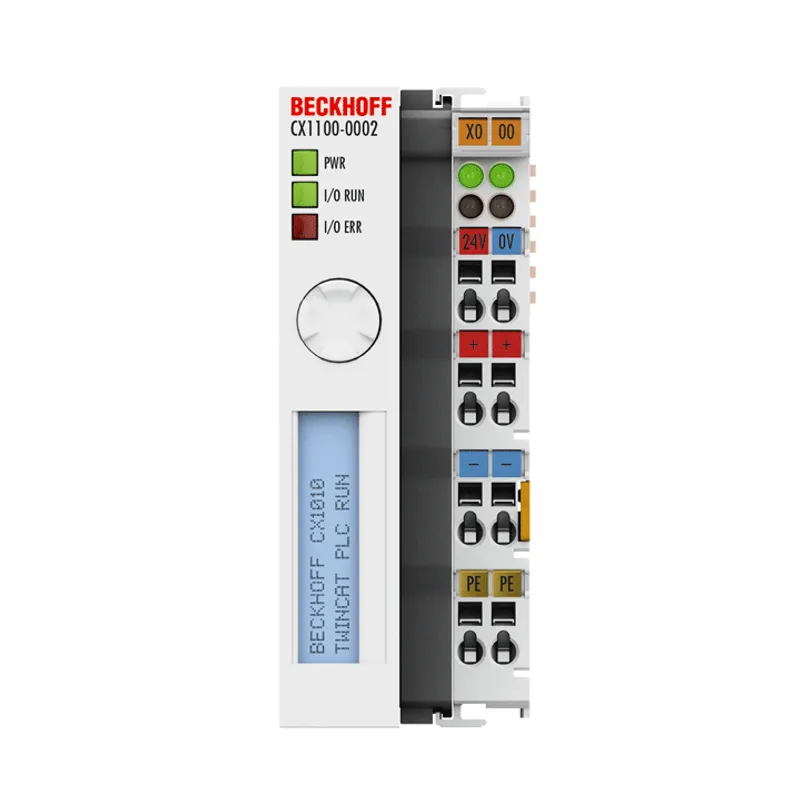

Beckhoff – CX1100-0002 Power supply units and I/O interfaces for CX1010/CX1020

MPN: CX1100-0002 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original CX1100-0002 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	IPC service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the CX1100-0002 now that it is discontinued?

Yes. Beckhoff has discontinued the CX1100-0002, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can CX1100-0002 be shipped?

CX1100-0002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CX1100-0002 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CX1100-0002 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX1100-0002, subject to availability and destination.

One of four power supply modules can be selected for CX1010/CX1020 systems. The power supply of all other system components is ensured via the internal PC/104 bus; no separate supply lines are required. However, the CX1100 components offer further

Beckhoff CX1100-0002 — Power supply units and I/O interfaces for CX1010/CX1020. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Power supply	24 V DC (-15%/+20%)
Current supply E-bus	–
Current supply K-bus	up to max. 1.75 A
Connection type	spring-loaded technique (adapter terminal)
NOVRAM	8 kbytes
Display	FSTN display 2 lines x 16 characters of text, illuminated
Diagnostics LED	1 x PWR, 1 x I/O Run, 1 x I/O Err
Max. power consumption	3.5 W
Dimensions (W x H x D)	40 mm x 100 mm x 91 mm
Weight	approx. 250 g
Storage temperature	-25…+85°C
Operating temperature	0…55°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL
