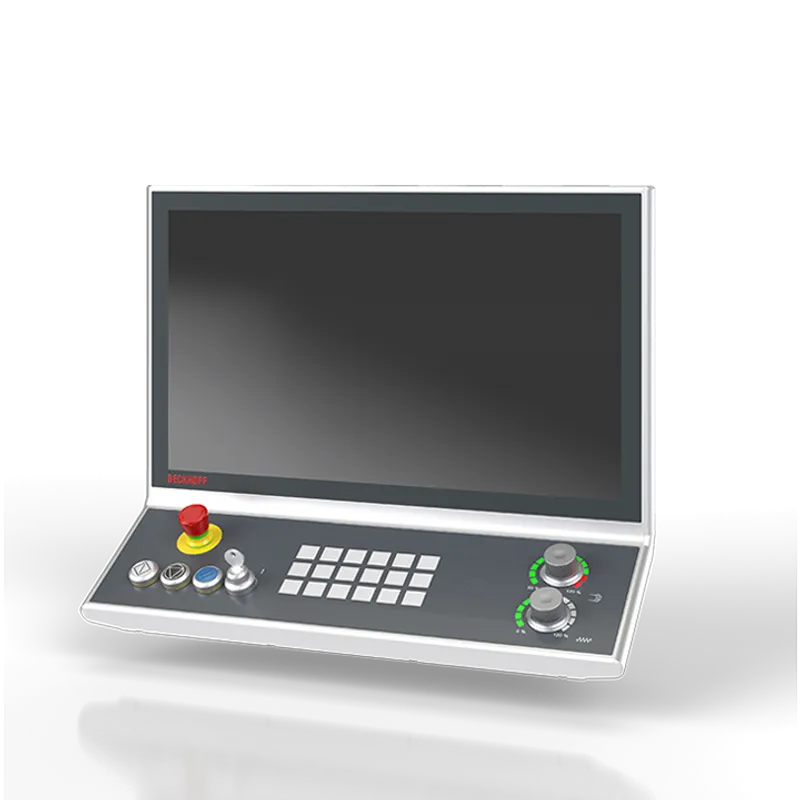

Beckhoff CP3921-1513-0010

CNC multi-touch Control Panel in a special CNC function design with CP-Link 4

MPN: CP3921-1513-0010
Category: CP39xx

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff CP3921-1513-0010?

The Control Panels in the CP39xx-151x-00x0 series, featuring an angled push-button extension in a special CNC function design, are control and operating devices specifically designed for CNC applications. In addition, the CP3921-1512-00x0 have an LED

Specifications

Device type	Multi-touch Control Panel with CP-Link 4 interface
Housing	aluminum housing with glass front
Display size/resolution	21.5-inch display 1920 x 1080
Touch screen	multi-finger touch screen
Protection rating	IP65
Connection technology	CP-Link 4 enables to connect the Control Panel at a distance of up to 100 m to the PC via a Cat.6A cable with either an integrated or separate 24 V DC power supply depending on the transmitter module. CP-Link 4 transmits USB 2.0 with 100 Mbit/s and DVI.
Mounting arm adapter	connection block with 4 M6 threaded holes each with a distance of 100 x 100 mm and 70 x 130 mm at the rear panel of the control panel
Interfaces	1 x round connector IP65 M23 19-pin for power supply of the Control Panel and CNC extension 1 x round connector M12 IP65 for CP-Link 4
Operating temperature	0…50°C
