Beckhoff CP3921-1502-0010
CNC multi-touch Control Panel in a special CNC function design with CP-Link 4
- MPN
- CP3921-1502-0010
- Category
- CP39xx
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

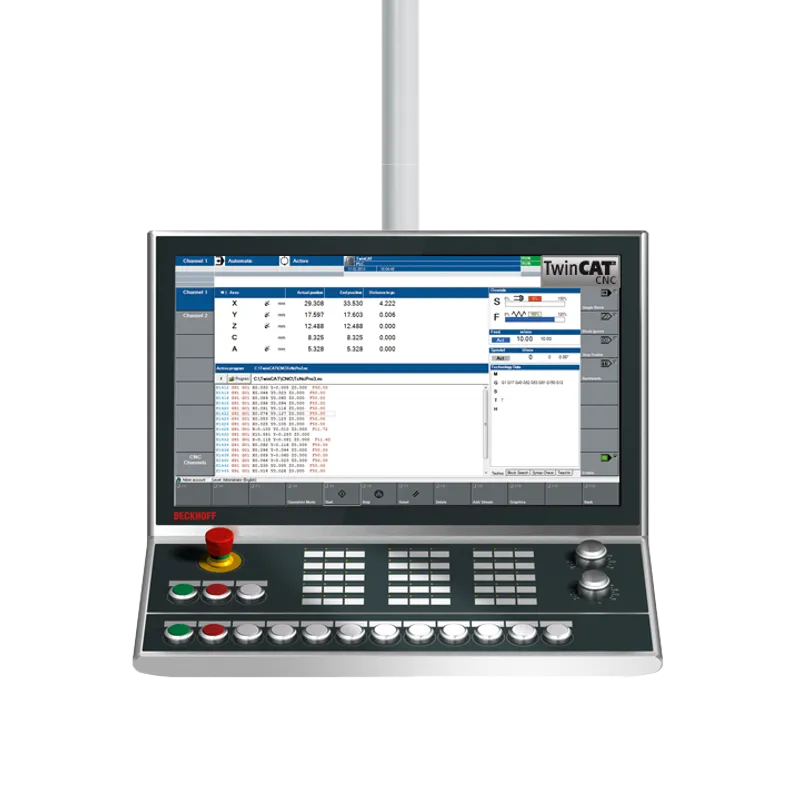

What is the Beckhoff CP3921-1502-0010?
The Control Panels in the CP39xx-15xx-00x0 series, featuring an angled push-button extension in a special CNC function design, are control and operating devices specifically designed for CNC applications. The 21.5-inch display offers full HD resolution
Specifications
Specifications
| Device type | Multi-touch Control Panel with CP-Link 4 interface |
| Housing | aluminum housing with glass front |
| Display size/resolution | 21.5-inch display 1920 x 1080 |
| Touch screen | multi-finger touch screen |
| Protection rating | IP65 |
| Connection technology | CP-Link 4 enables to connect the Control Panel at a distance of up to 100 m to the PC via a Cat.6A cable with either an integrated or separate 24 V DC power supply depending on the transmitter module. CP-Link 4 transmits USB 2.0 with 100 Mbit/s and DVI. |
| Mounting arm adapter | rotatable and tiltable mounting arm adapter for mounting arm systems with 48 mm tube from top |
| Interfaces | 1 x round connector IP65 M23 19-pin for power supply of the Control Panel and CNC extension 1 x round connector M12 IP65 for CP-Link 4 |
| Operating temperature | 0…50°C |
No matching specifications
CP3921-1502-0010: frequently asked questions
When can CP3921-1502-0010 be shipped?
CP3921-1502-0010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CP3921-1502-0010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CP3921-1502-0010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP3921-1502-0010, subject to availability and destination.
