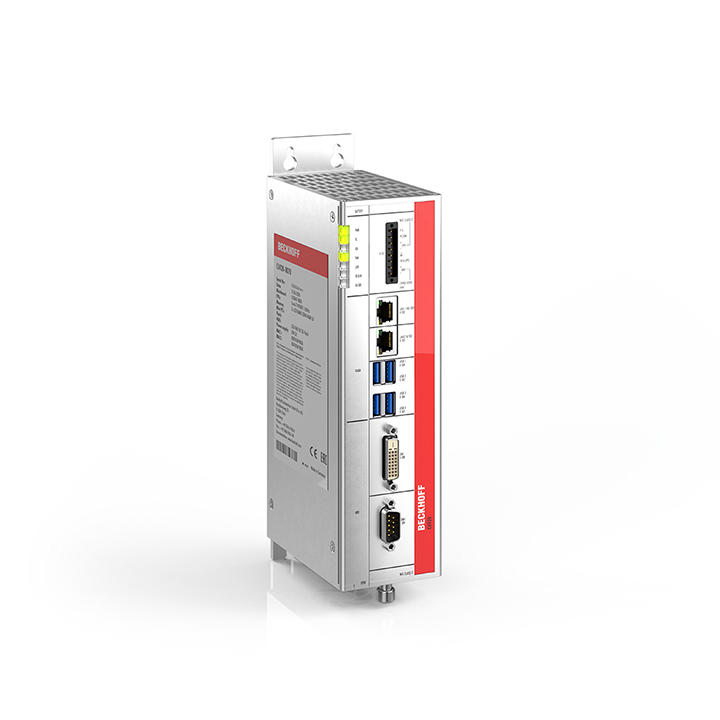

Control cabinet Industrial PC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | C6920 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can C6920-0080 be shipped?
C6920-0080 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up C6920-0080 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for C6920-0080 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C6920-0080, subject to availability and destination.
The C69xx Industrial PC series is characterized by its compact design, the robust aluminum housings, and an especially wide choice of components and interfaces. Equipped with 3½-inch Beckhoff motherboards, C69xx Industrial PCs range from the very small
Specifications
Specifications
| Device type | Control cabinet Industrial PC |
| Housing | aluminum housing |
| Installation | mounting sheet at the rear wall |
| Slots for hard disk/flash | 1 slot for 2½-inch hard disk/SSD, 1 slot for CFast |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Protection rating | IP20 |
| Operating temperature | 0…55°C |
| Weight of basic configuration | 1.9 kg (4.2 lbs) |
| Dimensions (W x H x D) | 65 x 235 x 121 mm (2.6" x 9.3" x 4.8"), without mounting plate |
| Processor | Intel® Celeron® 6600HE 2.6 GHz base frequency, 2 cores (TC3: 50) |
| Motherboard | 3½-inch motherboard for 11th generation Intel® Celeron®, Core™ i3/i5/i7 |
| PCIe®/PCI™ slots | – |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 1 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 2½-inch, 320 GB |
| Interfaces | 4 x USB 3.2 Gen. 2, 1 x RS232, 1 x DVI |
| Power supply | 24 V DC |
| Operating system | – |
