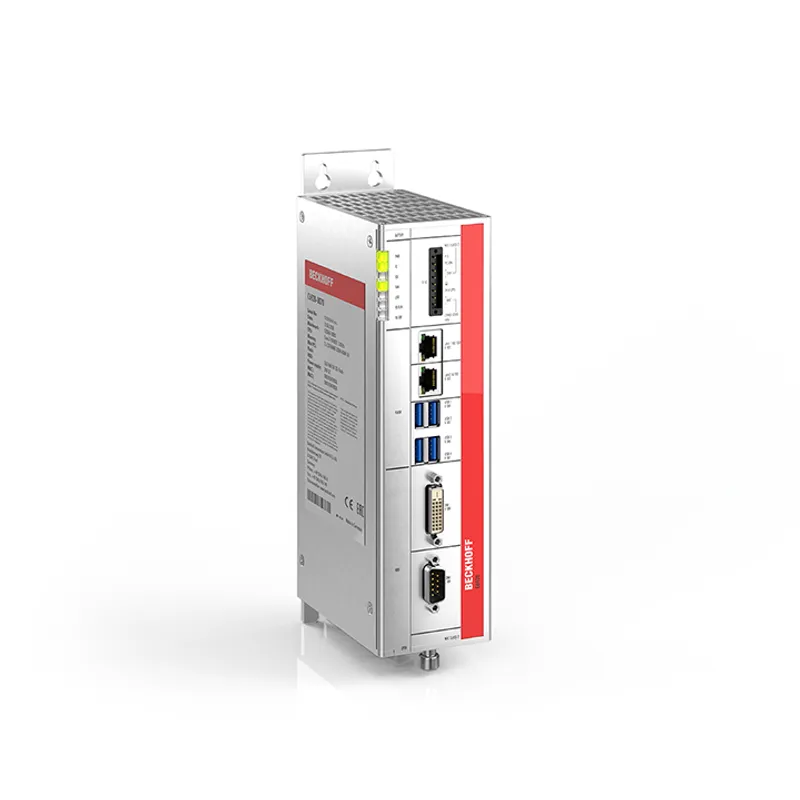

Beckhoff C6920-0060

Control cabinet Industrial PC

MPN: C6920-0060
Category: C6920

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff C6920-0060?

The C69xx Industrial PC series is characterized by its compact design, the robust aluminum housings, and an especially wide choice of components and interfaces. Equipped with 3½-inch Beckhoff motherboards, C69xx Industrial PCs range from the very small

Specifications

Device type	Control cabinet Industrial PC
Housing	aluminum housing
Installation	mounting sheet at the rear wall
Slots for hard disk/flash	1 slot for 2½-inch hard disk/SSD, 1 slot for CFast
Free space for air circulation	5 cm (2") on top and bottom of the PC required
Protection rating	IP20
Operating temperature	0…55°C
Weight of basic configuration	1.9 kg (4.2 lbs)
Dimensions (W x H x D)	65 x 235 x 121 mm (2.6" x 9.3" x 4.8"), without mounting plate
Processor	Intel® Celeron® G3900TE 2.3 GHz, 2 cores (TC2, TC3: 50)
Motherboard	3½-inch motherboard for 6th/7th generation Intel® Celeron®, Pentium®, Core™ i3/i5/i7
PCIe®/PCI™ slots	–
Memory	4 GB DDR4 RAM
Graphic	integrated in the processor
Ethernet	2 x 100/1000BASE-T on-board
RAID	on-board SATA RAID 1 controller
Hard disks/flash	hard disk, 2½-inch, 320 GB
Interfaces	4 x USB 3.0, 1 x RS232, 1 x DVI
Power supply	24 V DC
Operating system	–

C6920-0060: frequently asked questions

When can C6920-0060 be shipped?

C6920-0060 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up C6920-0060 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for C6920-0060 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C6920-0060, subject to availability and destination.
