What is the Beckhoff C6025-0010?

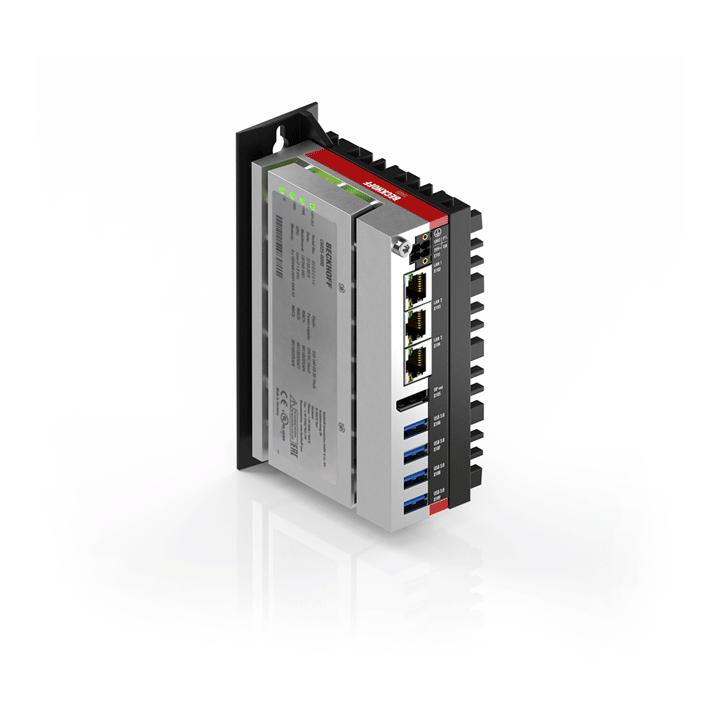

The C6025 ultra-compact Industrial PC is designed as a fanless device and offers the high Intel® Core™ i computing power despite its small dimensions of 82 x 127 x 50 mm. The Intel® Core™ i U processors with up to four processor cores form the basis for
Specifications
Specifications
| Device type | Ultra-compact control cabinet PC |
| Housing | aluminum zinc die-cast housing |
| Installation | mounting sheet at the rear wall |
| Slots for hard disk/flash | 1 slot for M.2 SSD |
| Cooling | passive with single side cooling plate |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Protection rating | IP20 |
| Operating temperature | 0…50°C |
| Dimensions (W x H x D) | 82 x 127 x 47 mm (3.2” x 5” x 1.9”), without mounting plate |
| Processor | Intel® Celeron® 6305E 1.8 GHz base frequency, 2 cores (TC3: 50) |
| Motherboard | compact motherboard for 11th generation Intel® Celeron®, Core™ i3/i5/i7, U series |
| Memory | 8 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board |
| Hard disks/flash | 40 GB M.2 SSD |
| Interfaces | 4 x USB 3.2 Gen. 2, 1 x DisplayPort |
| Power supply | 24 V DC |
| Operating system | – |
C6025-0010: frequently asked questions
When can C6025-0010 be shipped?
C6025-0010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up C6025-0010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for C6025-0010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C6025-0010, subject to availability and destination.
