Beckhoff C6025-0000

Fanless ultra-compact Industrial PC

MPN: C6025-0000
Category: C6025

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

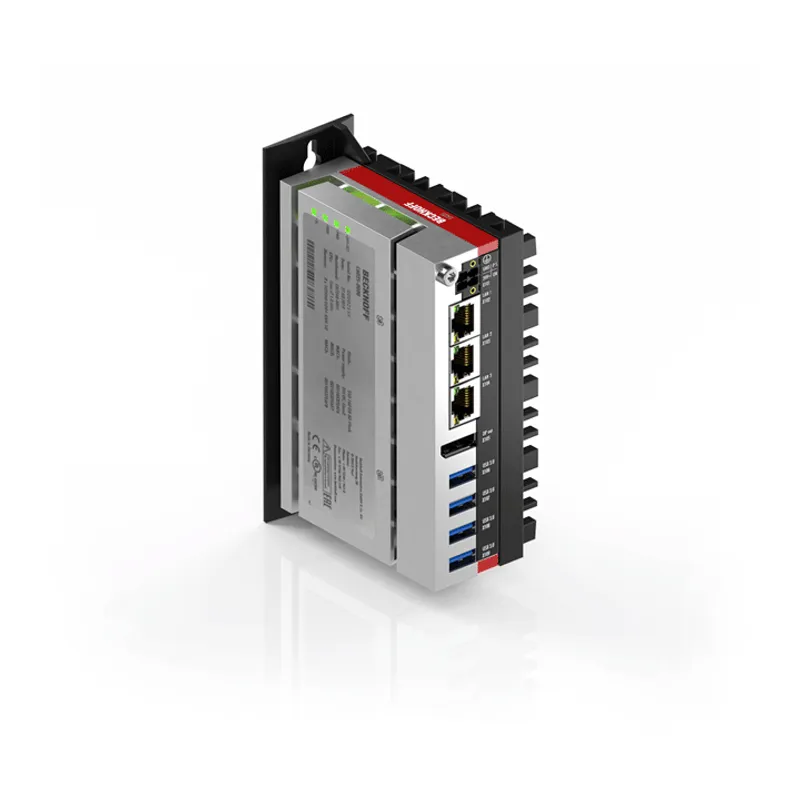

What is the Beckhoff C6025-0000?

The C6025 ultra-compact Industrial PC is designed as a fanless device and offers the high Intel® Core™ i computing power despite its small dimensions of 82 x 127 x 50 mm. The Intel® Core™ i U processors with up to four processor cores form the basis for

Specifications

Device type	Ultra-compact control cabinet PC
Housing	aluminum zinc die-cast housing
Installation	mounting sheet at the rear wall
Slots for hard disk/flash	1 slot for M.2 SSD
Cooling	passive with single side cooling plate
Free space for air circulation	5 cm (2") on top and bottom of the PC required
Protection rating	IP20
Operating temperature	0…50°C
Dimensions (W x H x D)	82 x 127 x 47 mm (3.2” x 5” x 1.9”), without mounting plate
Processor	Intel® Celeron® 4305UE 2.0 GHz, 2 cores (TC3: 50)
Motherboard	compact motherboard for 8th generation Intel® Celeron®, Core™ i3/i5/i7, U series
Memory	4 GB DDR4 RAM
Graphic	integrated in the processor
Ethernet	3 x 100/1000BASE-T on-board
Hard disks/flash	40 GB M.2 SSD
Interfaces	4 x USB 3.0, 1 x DisplayPort
Power supply	24 V DC
Operating system	–

C6025-0000: frequently asked questions

When can C6025-0000 be shipped?

C6025-0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up C6025-0000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for C6025-0000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C6025-0000, subject to availability and destination.
