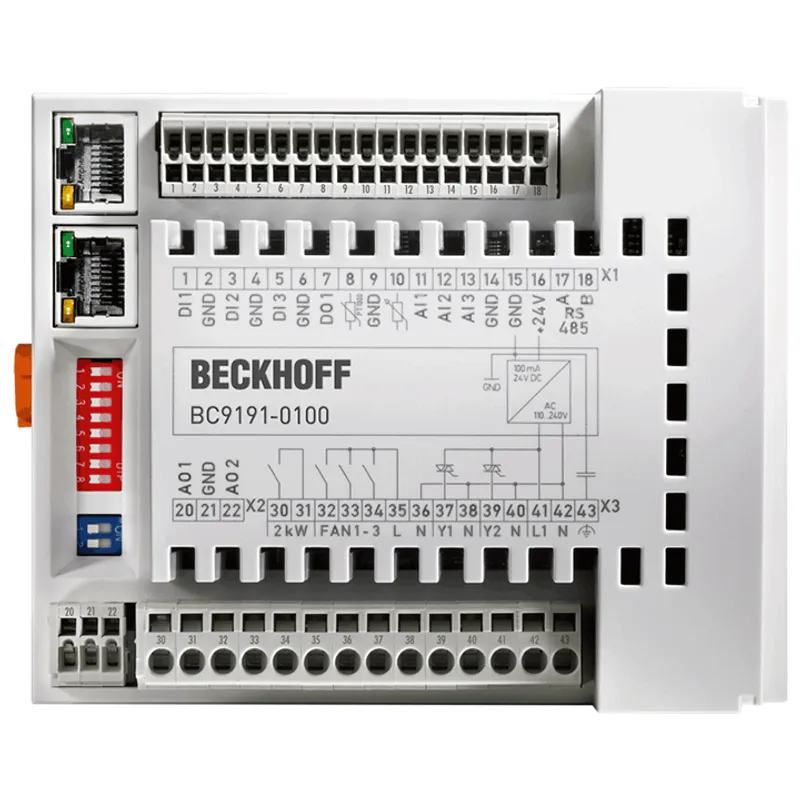

Beckhoff BC9191-0100

Building Automation room controller

MPN: BC9191-0100
Category: BCxxxx, BXxxxx | Controller

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff BC9191-0100?

The compact BC9191 room controller has an integrated PLC and the sensor/actuator interfaces necessary for room automation. This way, it can be used as an autonomous or local controller. Compared with the BC9191-0000, the BC9191-0100 has an RS485

Specifications

Programming	with TwinCAT 2 via Ethernet
Program memory	128 kbytes
Data memory	128 kbytes
Remanent data	2 kbytes
Runtime system	1 PLC task
Programming languages	IEC 61131-3 (IL, LD, FBD, SFC, ST)
Online change	yes
Number of Bus Terminals	64
Max. number of bytes fieldbus	512 byte input and 512 byte output
Ethernet interface	2 x RJ45 (switched)
Protocol	TwinCAT ADS, Modbus TCP
Digital inputs	3 contacts (e.g. window contact, dew point, occupancy sensor)
Analog inputs	3 x 0…10 V (e.g. CO2 sensor, air quality sensor, brightness sensor) 1 x PT/Ni1000 (-20…+60 °C) for air temperature measurement 1 x resistance measurement for set value specification (0…10 KΩ)
Digital outputs	1 x 10 mA, LED output (max. 24 V) 1 x 230 V AC, 10 A, relay (e.g. air heater) 3 x 230 V AC, 1 A, relay (3-stage fan) 2 x 230 V AC, 1 A, triac (e.g. valves for heating and cooling)
Analog outputs	2 x 0…10 V (e.g. volumetric air flow controller)
Bus interface	2 x RJ45 (switched)
Sub bus system	1 x RS485
Supply voltage	230 V AC
Current supply K-bus	200 mA
Dimensions (W x H x D)	118 mm (127 mm with end cover and DIN rail mounting) x 100 mm x 70 mm
Weight	approx. 345 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Protect. rating/installation pos.	IP20/vertical
Approvals/markings	CE
Design form	compact controller
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Wiring	spring-loaded technique with pluggable wiring level
Connection cross-section	see documentation
Stripping length	see documentation
