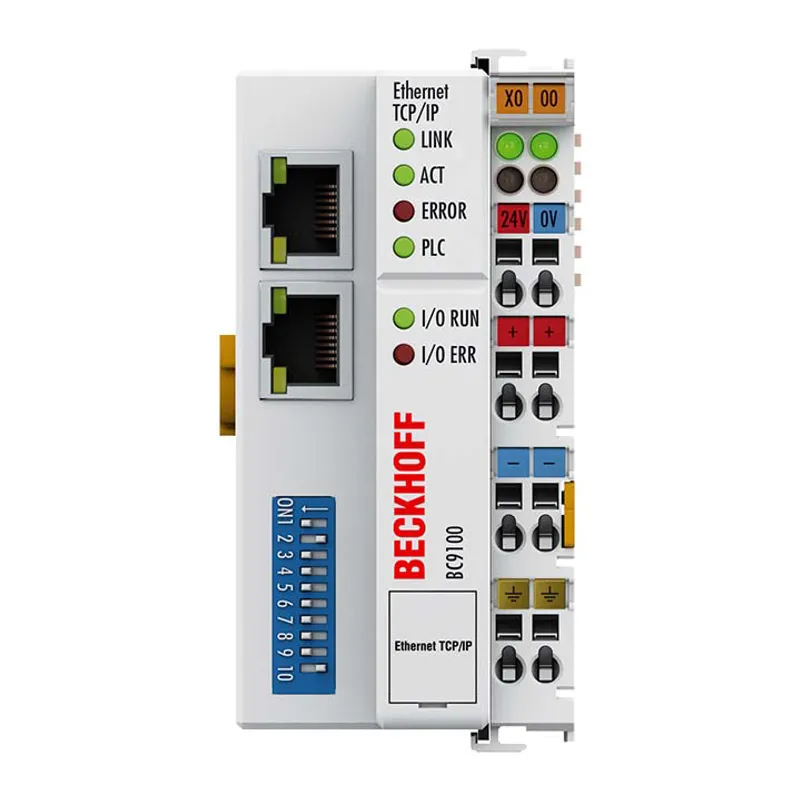

Beckhoff BC9100

Ethernet TCP/IP Bus Terminal Controller

MPN: BC9100
Category: BCxxxx, BXxxxx | Controller

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff BC9100?

The Bus Terminal Controller BC9100 is a Bus Coupler with integrated PLC functionality and has a fieldbus interface for Ethernet. The BC9100 is an intelligent slave and can be used as a non-central intelligence in the Ethernet system. One unit consists of

Specifications

Programming	via TwinCAT and programming interface or Ethernet
Program memory	64/96 kbytes
Data memory	64/128 kbytes
Remanent data	4080 bytes
Runtime system	1 PLC task
PLC cycle time	approx. 1.5 ms for 1,000 instructions (without I/O cycle, K-bus)
Programming languages	IEC 61131-3 (IL, LD, FBD, SFC, ST)
Online change	–
Number of Bus Terminals	64
Max. number of bytes fieldbus	512 byte input and 512 byte output
Max. number of bytes process image	512 byte input and 512 byte output
Digital peripheral signals	512 inputs/outputs
Analog peripheral signals	128 inputs/outputs
Protocol	TwinCAT ADS, Modbus TCP
Data transfer rates	10/100 Mbit/s, automatic recognition of the transmission rate
Bus interface	2 x RJ45 (2-channel switch)
Configuration	via KS2000 or Ethernet
Power supply	24 V DC (-15%/+20%)
Input current	70 mA + (total K-bus current)/4, 500 mA max.
Starting current	2.5 x continuous current
Recommended fuse	≤ 10 A
Current supply K-bus	1750 mA
Power contacts	max. 24 V DC/max. 10 A
Electrical isolation	500 V (power contact/supply voltage/fieldbus)
Weight	approx. 170 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, CCC, UL, ATEX, IECEx, DNV
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	51 mm x 100 mm x 69 mm
