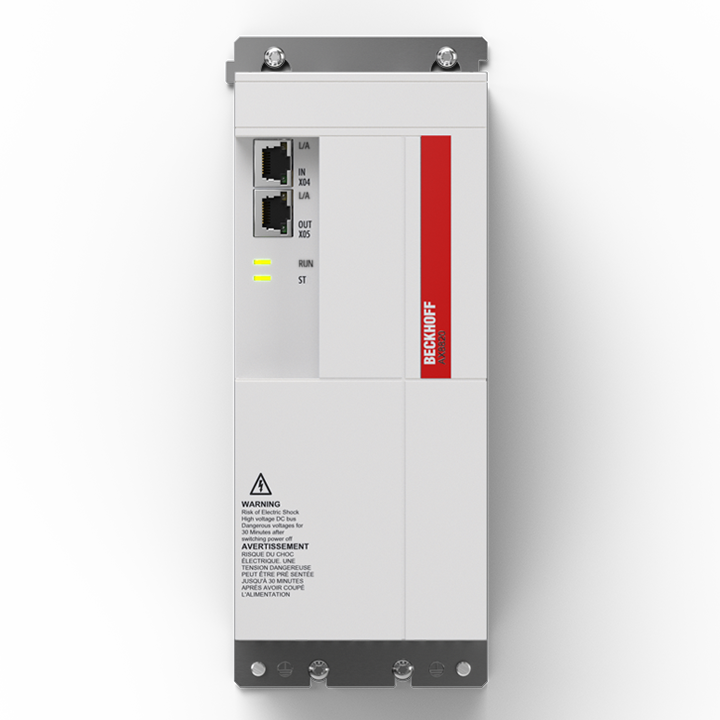

Beckhoff AX8820

Universal regenerative unit

MPN: AX8820
Category: AX8000 | Multi-axis servo system

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff AX8820?

Intelligent energy regeneration for maximum efficiency The AX8820 universal regenerative unit is used to feed regenerative energy back into the supply grid. It is compatible with the AX8000 multi-axis servo system, AX5000 digital compact servo drives

Specifications

Function	regenerative unit
Rated supply voltage	400…480 V AC
Rated power	7.00 kW
DC link voltage	max. 848 V DC
System bus	EtherCAT
Drive profile	CiA402 according to IEC 61800-7-201 (CoE)
Ambient temperature (operation)	0…45°C, up to 55 °C with power reduction (see documentation)
Approvals/markings	CE, UL/CSA
Height without connectors	230 mm
Depth without connectors	186.5 mm
Width	90 mm

AX8820: frequently asked questions

When can AX8820 be shipped?

AX8820 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AX8820 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AX8820 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AX8820, subject to availability and destination.
