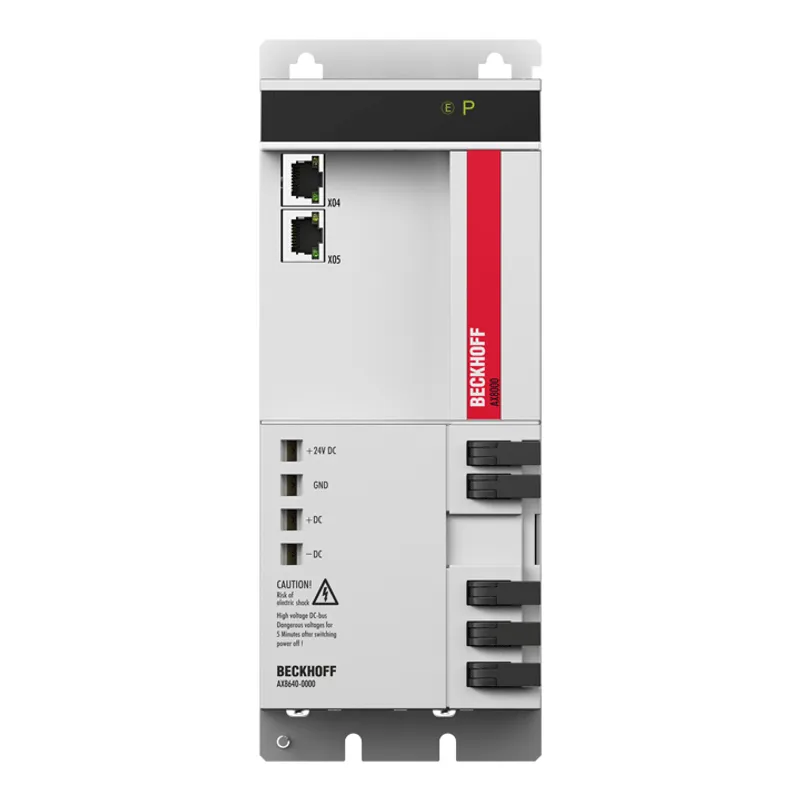

Beckhoff AX8640

Power supply module

MPN: AX8640
Category: AX8000 | Multi-axis servo system

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff AX8640?

A power supply module generates the DC link voltage (DC) for the power supply of the axis modules and the option modules from the mains voltage. It already contains a mains filter, for which the drive is tested and certified in accordance with EN 61800-3

Specifications

Function	power supply module
Rated supply voltage	3 x 200…480 V AC
DC link voltage	max. 848 V DC
DC link output current	3~: 40.0 A DC
System bus	EtherCAT
Drive profile	CiA402 according to IEC 61800-7-201 (CoE)
Ambient temperature (operation)	0…40°C, up to 55°C with power reduction (see documentation)
Approvals/markings	CE, cULus
Protection rating	IP20
Width	90 mm
Height without connectors	230 mm
Depth without connectors	192 mm
