Beckhoff

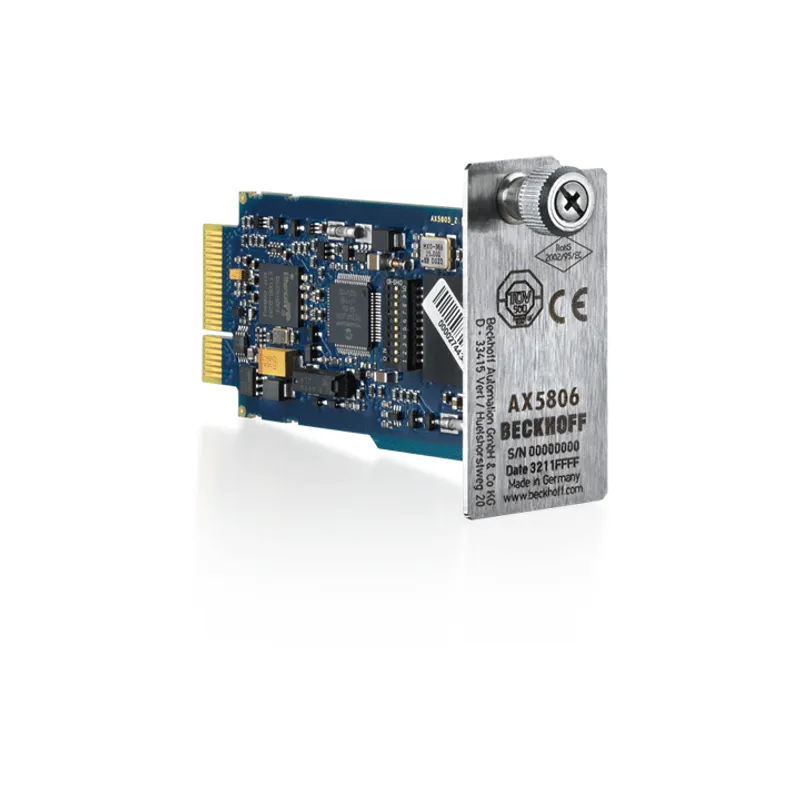

Beckhoff AX5806

TwinSAFE drive option card

MPN
AX5806
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the Beckhoff AX5806?

The AX5806 TwinSAFE component is an option card for the AX5000 servo drive series from 60 A to 170 A and enables the implementation of safety-relevant drive functions. These functions are controlled via FSoE by a TwinSAFE Logic-capable component.

Specifications

Specifications

FunctionTwinSAFE option card
Drive profileFSoE
Safe acceleration functionsSafe Maximum Acceleration (SMA), Safe Acceleration Range (SAR)
Safe direction functionsSafe Direction positive (SDIp), Safe Direction negative (SDIn)
Safe speed functionsSafe Speed Range (SSR), Safely Limited Speed (SLS), Safe Speed Monitor (SSM), Safe Maximum Speed (SMS)
Safe position functionsSafely Limited Position (SLP), Safe CAM (SCA), Safely Limited Increment (SLI)
Safe stop functionsSafe Torque Off (STO), Safe Stop 1 (SS1), Safe Stop 2 (SS2), Safe Operating Stop (SOS)
Safety standardEN ISO 13849-1:2015 (Cat. 4, PL e) and IEC 61508:2010 (SIL 3)
Realization STOvia FSoE
Approvals/markingsCE, cULus
Ambient temperature (operation)0…50°C

AX5806: frequently asked questions

When can AX5806 be shipped?

AX5806 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AX5806 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AX5806 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AX5806, subject to availability and destination.

More Beckhoff parts

Beckhoff AX5721 – Digital encoder option card for AX51xx
Beckhoff
AX5721

Digital encoder option card for AX51xx

Beckhoff AX5722 – Digital encoder option card for AX52xx
Beckhoff
AX5722

Digital encoder option card for AX52xx

Beckhoff AX5801 – TwinSAFE drive option card
Beckhoff
AX5801

TwinSAFE drive option card

Beckhoff AX5805 – TwinSAFE drive option card
Beckhoff
AX5805

TwinSAFE drive option card

Beckhoff AX5901-0000 – AX-Bridge quick connection system (power), for AX5x01 up to AX5125
Beckhoff
AX5901-0000

AX-Bridge quick connection system (power), for AX5x01 up to AX5125

Beckhoff AX5902-0000 – AX-Bridge quick connection system (power), for AX5140
Beckhoff
AX5902-0000

AX-Bridge quick connection system (power), for AX5140

Beckhoff AX5911-0000 – AX-Bridge quick connection system (distribution), for AX5x01 up to AX5112
Beckhoff
AX5911-0000

AX-Bridge quick connection system (distribution), for AX5x01 up to AX5112

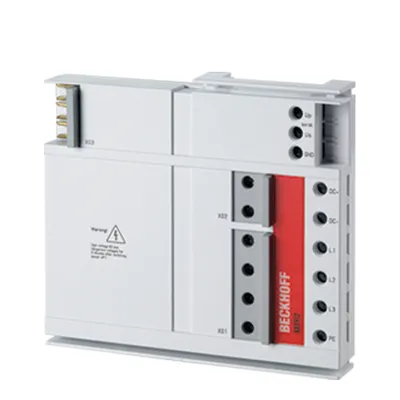

Beckhoff AX5912-0000 – AX-Bridge quick connection system (distribution), for AX5118 and AX5125
