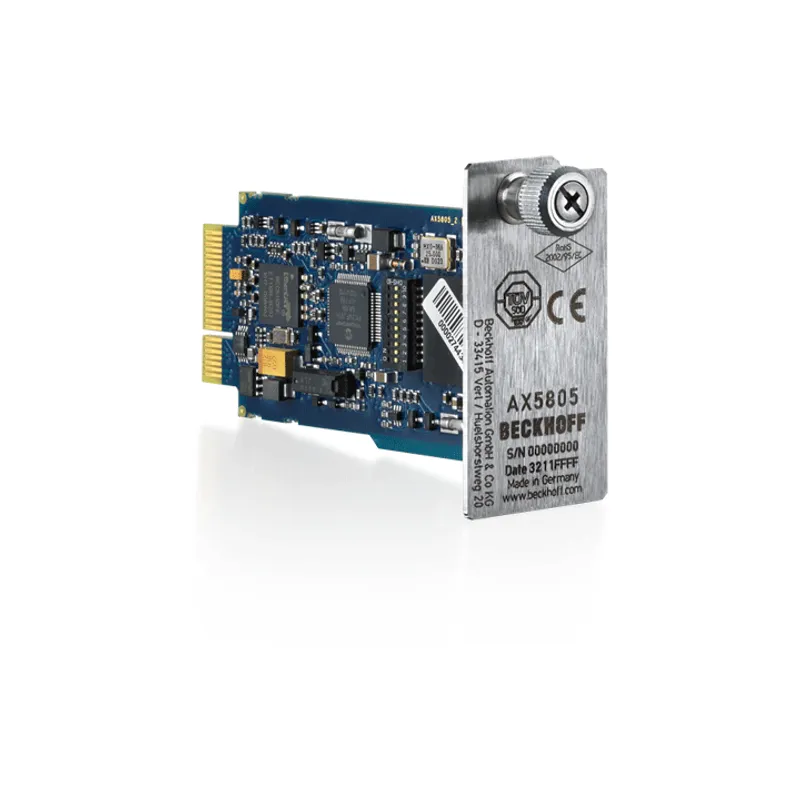

Beckhoff AX5805

TwinSAFE drive option card

MPN: AX5805
Category: AX5000 | Digital compact servo drives

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff AX5805?

The AX5805 TwinSAFE component is an option card for the AX5000 servo drive series from 1.5 A to 40 A and enables the implementation of safety-relevant drive functions. These functions are controlled via FSoE by a TwinSAFE Logic-capable component.

Specifications

Function	TwinSAFE option card
Drive profile	FSoE
Safe acceleration functions	Safe Maximum Acceleration (SMA), Safe Acceleration Range (SAR)
Safe direction functions	Safe Direction positive (SDIp), Safe Direction negative (SDIn)
Safe speed functions	Safe Speed Range (SSR), Safely Limited Speed (SLS), Safe Speed Monitor (SSM), Safe Maximum Speed (SMS)
Safe position functions	Safely Limited Position (SLP), Safe CAM (SCA), Safely Limited Increment (SLI)
Safe stop functions	Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Stop 2 (SS2), Safe Operating Stop (SOS)
Safety standard	EN ISO 13849-1:2015 (Cat. 4, PL e) and IEC 61508:2010 (SIL 3)
Realization STO	via FSoE
Approvals/markings	CE, cULus
Ambient temperature (operation)	0…50°C
