Beckhoff AS1050

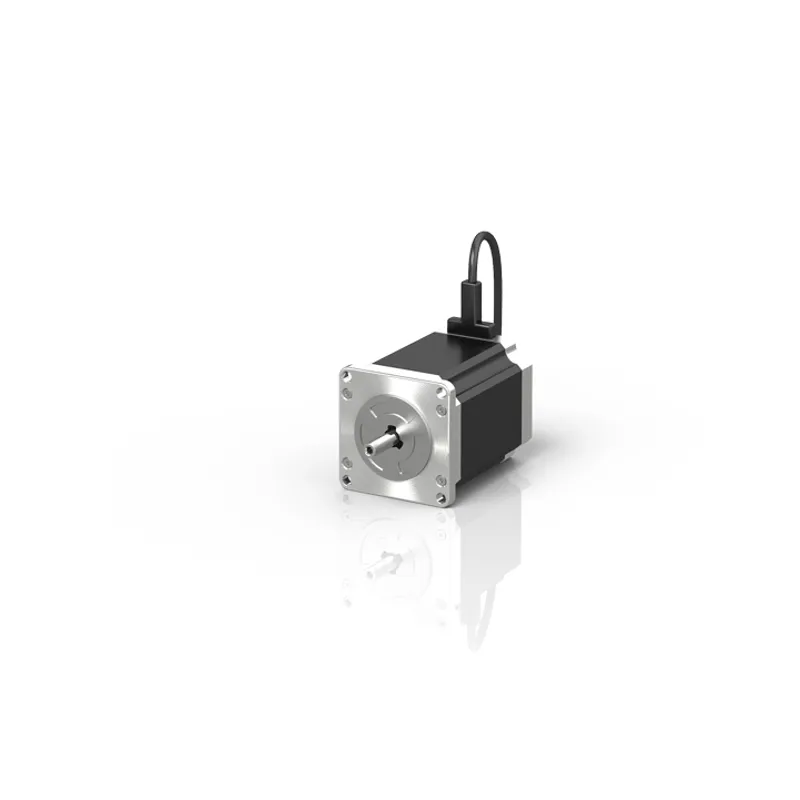

Stepper motor, holding torque 1.2 Nm, N2 (NEMA23/56 mm)

MPN: AS1050
Category: ASxxxx | Stepper motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff AS1050?

The AS1000 stepper motors with flange codes from 42 to 86 mm (N1 = NEMA17, N2 = NEMA23, N3 = NEMA34) and torques from 0.4 to 5 Nm are ideally suited for use as auxiliary axes and positioning drives. They are characterized by robustness and high holding

Specifications

Nominal voltage	24…48 V DC
Holding torque	1.20 Nm
Rated current	5.00 A
Resolution	1.8°/200 full steps
Connection method	M12 cable bundle
Ambient temperature (operation)	0…40°C
Approvals/markings	CE
Protection rating	IP43
a	38.1 mm
b	6.35 mm
d	20.6 mm
k	75.8 mm
l	47.14 mm
m	33 mm
o	24 mm
r	56 mm (NEMA23)
