Beckhoff AS1030

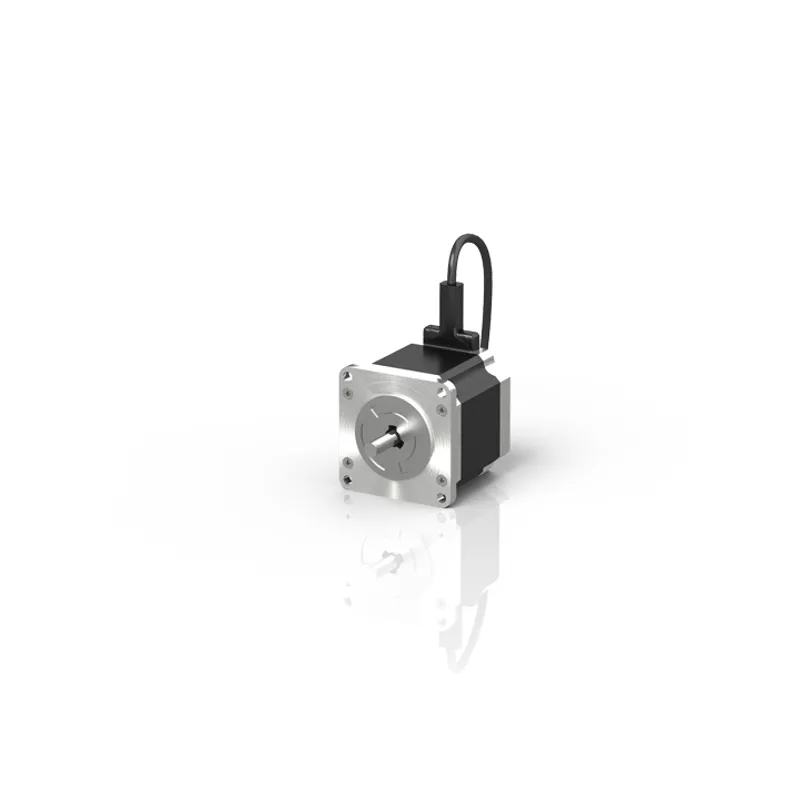

Stepper motor, holding torque 0.6 Nm, N2 (NEMA23/56 mm)
- MPN
- AS1030
- Category
- ASxxxx | Stepper motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff AS1030?
The AS1000 stepper motors with flange codes from 42 to 86 mm (N1 = NEMA17, N2 = NEMA23, N3 = NEMA34) and torques from 0.4 to 5 Nm are ideally suited for use as auxiliary axes and positioning drives. They are characterized by robustness and high holding
Specifications
Specifications
| Nominal voltage | 24…48 V DC |
| Holding torque | 0.60 Nm |
| Rated current | 1.50 A |
| Resolution | 1.8°/200 full steps |
| Connection method | M12 cable bundle |
| Ambient temperature (operation) | 0…40°C |
| Approvals/markings | CE |
| Protection rating | IP43 |
| a | 38.1 mm |
| b | 6.35 mm |
| d | 20.6 mm |
| k | 54 mm |
| l | 47.14 mm |
| m | – |
| o | – |
| r | 56 mm (NEMA23) |
AS1030: frequently asked questions
When can AS1030 be shipped?
AS1030 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AS1030 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AS1030 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AS1030, subject to availability and destination.
