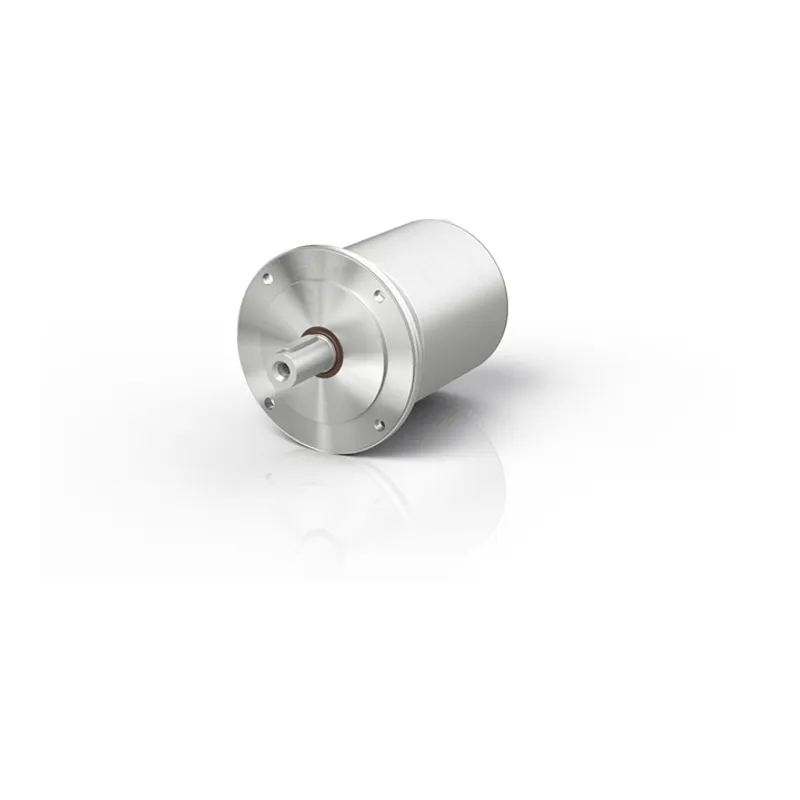

Stainless steel servomotors from 7.75 Nm (M0)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AM8861 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can AM8861-wEyz be shipped?
AM8861-wEyz is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AM8861-wEyz in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AM8861-wEyz and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AM8861-wEyz, subject to availability and destination.
The AM8861 stainless steel servomotor is suitable for use in the food, chemical and pharmaceutical industries in the 100…480 V AC voltage range. The standstill torque of the motor is 7.75 Nm. It is available with the OCT feedback system (absolute
Specifications
Specifications
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100…480 V AC |
| Standstill torque | 7.75 Nm |
| Rated torque | 6.20 Nm |
| Peak torque | 36 Nm |
| Rated speed | 1500 min-1 |
| Rated power | 0.97 kW |
| Standstill current | 2.53 A |
| Peak current | 13.9 A |
| Torque constant | 3.06 Nm/A |
| Rotor moment of inertia | 11.1 kgcm² |
| Motor feedback | resolver, single-turn absolute encoder OCT, 18 bit, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate, B/SSD |
| Cooling | convection |
| Connection technology | M23 speedtec® socket or direct connection for AX5000/AX8000 |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus |
| Protection rating | IP69K |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | stainless steel |
| Coating/surface | stainless steel |
| a | 130 j6 |
| b | 32 k6 |
| d | 58 mm |
| l | 165 mm |
| r | 189 mm |
| k (without brake) | 171.5 mm |
| k (with brake) | 221.5 mm |
