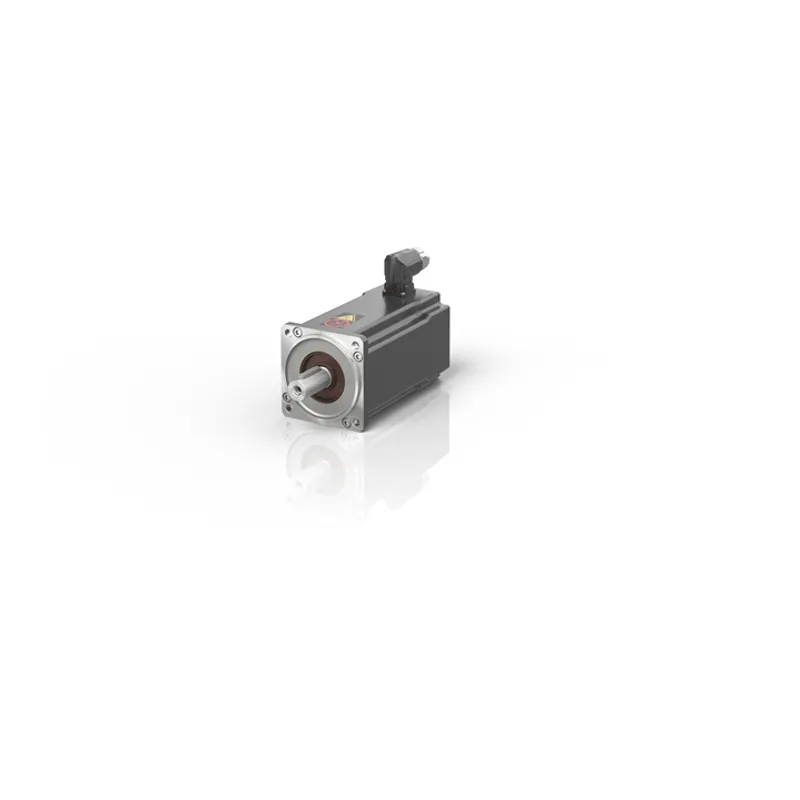

Servomotor with increased moment of inertia 4.10 Nm (M0), F4 (87 mm)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AM8542 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can AM8542-wFyz be shipped?
AM8542-wFyz is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AM8542-wFyz in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AM8542-wFyz and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AM8542-wFyz, subject to availability and destination.
The AM8542 high-inertia servomotor is suitable for drive solutions with increased moment of inertia to ensure synchronism and optimal ratio of load/motor inertia in the 100…480 V AC voltage range. The standstill torque of the motor is 4.10 Nm. It is
Specifications
Specifications
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100…480 V AC |
| Standstill torque | 4.10 Nm |
| Rated torque | 3.70 Nm |
| Peak torque | 18.9 Nm |
| Rated speed | 5000 min-1 |
| Rated power | 1.94 kW |
| Standstill current | 4.10 A |
| Peak current | 22.7 A |
| Torque constant | 1.00 Nm/A |
| Rotor moment of inertia | 5.51 kgcm² |
| Motor feedback | resolver, single-turn absolute encoder OCT, 18 bit, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate, B/SSD OCT, EnDat® 3, 19 bit, SIL 3-capable, single-turn or multi-turn absolute encoder, electronic nameplate |
| Cooling | convection |
| Connection technology | M23 speedtec® plug |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus |
| Protection rating | IP54, IP65 (shaft seal) |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| a | 80 j6 |
| b | 19 k6 |
| d | 40 mm |
| l | 100 mm |
| r | 87 mm |
| k (without brake) | 209.5 mm |
| k (with brake) | 239.5 mm |
