AM8542 Parts

Beckhoff

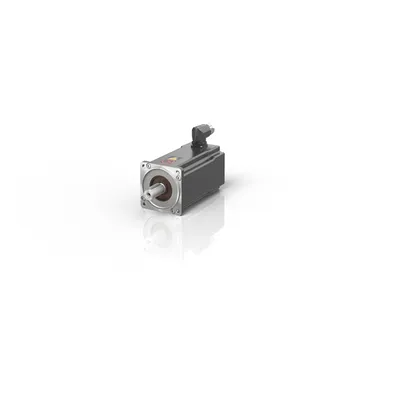

Servomotor with increased moment of inertia 4.10 Nm (M0), F4 (87 mm)

Beckhoff

Servomotor with increased moment of inertia 4.10 Nm (M0), F4 (87 mm)

Beckhoff

Servomotor with increased moment of inertia 4.10 Nm (M0), F4 (87 mm)

Compare AM8542

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Rated torque	Rated speed	Rated power	Standstill current	Peak current
AM8542-wJyz	3.10 Nm	8000 min-1	2.60 kW	6.90 A	37.6 A
AM8542-wFyz	3.70 Nm	5000 min-1	1.94 kW	4.10 A	22.7 A
AM8542-wEyz	3.90 Nm	2500 min-1	1.02 kW	2.15 A	11.8 A

Motor type	permanent magnet-excited three-phase synchronous motor
Nominal voltage	100…480 V AC
Standstill torque	4.10 Nm
Peak torque	18.9 Nm
Rotor moment of inertia	5.51 kgcm²
Cooling	convection
Connection technology	M23 speedtec® plug
Ambient temperature (operation)	5…40°C
