Beckhoff AM8372-wTyz

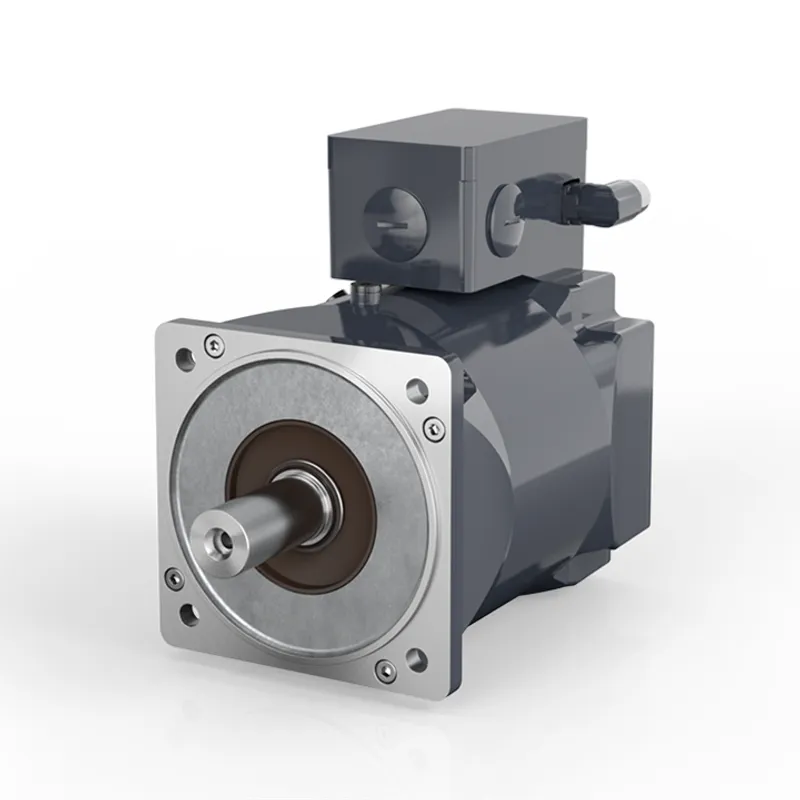

Servomotor with water cooling 129 Nm (M0), F7 (194 mm)

MPN: AM8372-wTyz
Category: AM8372

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AM8372-wTyz?

The AM8372 water-cooled servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range. The standstill torque of the motor is 129 Nm. The water-cooled servomotor with flange code F7 (194 mm)

Specifications

Motor type	permanent magnet-excited three-phase synchronous motor
Nominal voltage	100…480 V AC
Standstill torque	129 Nm
Rated torque	119 Nm
Peak torque	172 Nm
Rated speed	1500 min-1
Rated power	18.7 kW
Standstill current	48.9 A
Peak current	66.1 A
Torque constant	2.64 Nm/A
Rotor moment of inertia	92.2 kgcm²
Motor feedback	resolver, single-turn absolute encoder HIPERFACE®, multi-turn absolute encoder
Cooling	water cooling
Connection technology	terminal box
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus in preparation
Protection rating	IP54, IP65 (shaft seal)
Design form	flange-mounted according to IM B5, IM V1, IM V3
Material	aluminum
Coating/surface	acrylic powder-coated, dark gray, similar to RAL7016
k (without brake)	269 mm
k (with brake)	341.5 mm
