Beckhoff AM8363-wUyz

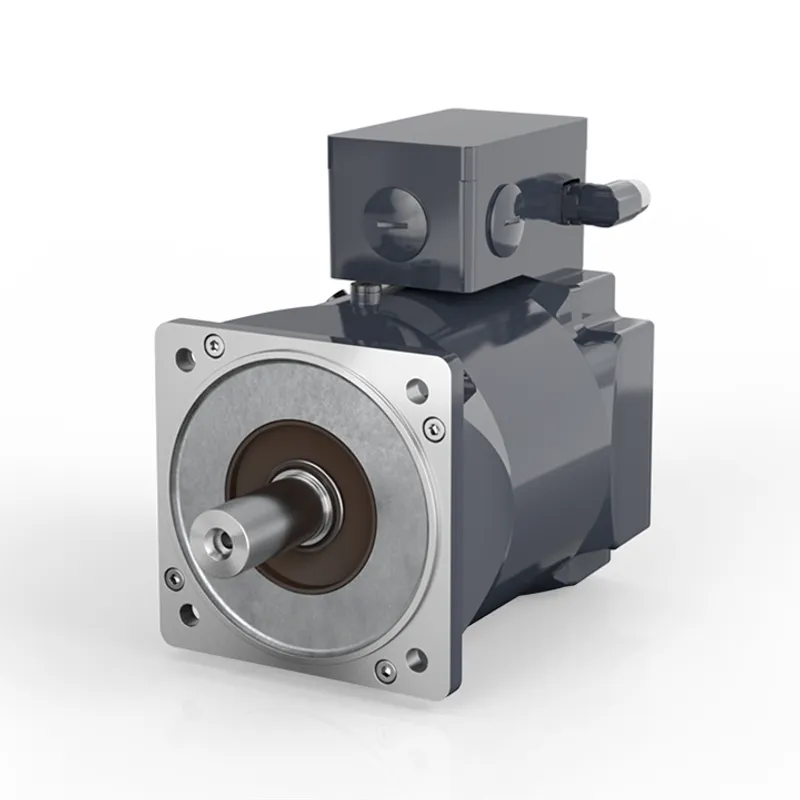

Servomotor with water cooling 60.6 Nm (M0), F6 (142 mm)

MPN: AM8363-wUyz
Category: AM8363

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AM8363-wUyz?

The AM8363 water-cooled servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range. The standstill torque of the motor is 60.65 Nm. The water-cooled servomotor with flange code F6

Specifications

Motor type	permanent magnet-excited three-phase synchronous motor
Nominal voltage	100…480 V AC
Standstill torque	60.6 Nm
Rated torque	28.2 Nm
Peak torque	111 Nm
Rated speed	4900 min-1
Rated power	14.5 kW
Standstill current	61.7 A
Peak current	130 A
Torque constant	0.982 Nm/A
Rotor moment of inertia	29.5 kgcm²
Motor feedback	resolver, single-turn absolute encoder HIPERFACE®, multi-turn absolute encoder
Cooling	water cooling
Connection technology	terminal box
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus in preparation
Protection rating	IP54, IP65 (shaft seal)
Design form	flange-mounted according to IM B5, IM V1, IM V3
Material	aluminum
Coating/surface	acrylic powder-coated, dark gray, similar to RAL7016
k (without brake)	256 mm
k (with brake)	315 mm
