Beckhoff AM8343-wQyz

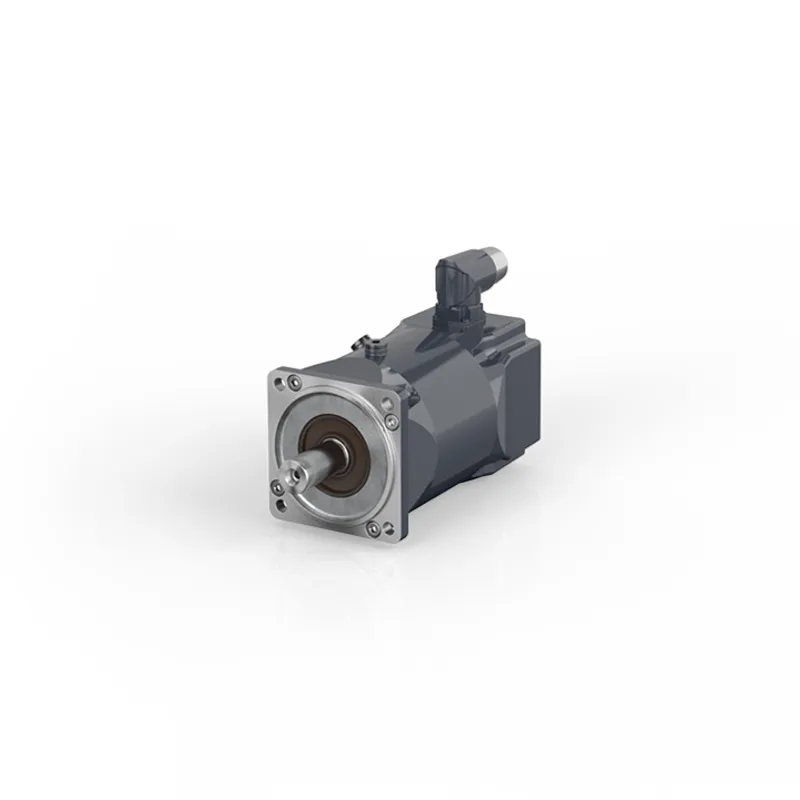

Servomotor with water cooling 14.8 Nm (M0), F4 (87 mm)

MPN: AM8343-wQyz
Category: AM8343

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AM8343-wQyz?

The AM8343 water-cooled servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of 14.77…16.35 Nm. It is

Specifications

Motor type	permanent magnet-excited three-phase synchronous motor
Nominal voltage	100…480 V AC
Standstill torque	14.8 Nm
Rated torque	13.6 Nm
Peak torque	29.2 Nm
Rated speed	7000 min-1
Rated power	9.97 kW
Standstill current	23.6 A
Peak current	53.9 A
Torque constant	0.627 Nm/A
Rotor moment of inertia	2.88 kgcm²
Motor feedback	resolver, single-turn absolute encoder OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate, B/SSD
Cooling	water cooling
Connection technology	M23 speedtec® plug
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus in preparation
Protection rating	IP54, IP65 (shaft seal)
Design form	flange-mounted according to IM B5, IM V1, IM V3
Material	aluminum
Coating/surface	acrylic powder-coated, dark gray, similar to RAL7016
k (without brake)	192 mm
k (with brake)	239.5 mm

AM8343-wQyz: frequently asked questions

When can AM8343-wQyz be shipped?

AM8343-wQyz is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AM8343-wQyz in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AM8343-wQyz and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AM8343-wQyz, subject to availability and destination.
