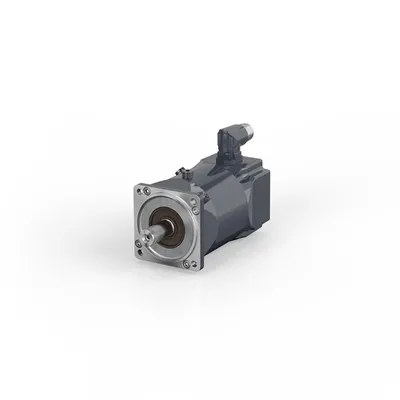

AM8343 Parts
Compare AM8343
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Rated speed | Rated power | Standstill current | Peak current | Torque constant |
|---|---|---|---|---|---|
| AM8343-wNyz | 3500 min-1 | 5.75 kW | 15.7 A | 31 A | 1.04 Nm/A |
| AM8343-wQyz | 7000 min-1 | 9.97 kW | 23.6 A | 53.9 A | 0.627 Nm/A |
| AM8343-wKyz | 1700 min-1 | 2.79 kW | 8.40 A | 16.6 A | 1.94 Nm/A |
Common to all listed parts
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100…480 V AC |
| Rotor moment of inertia | 2.88 kgcm² |
| Cooling | water cooling |
| Connection technology | M23 speedtec® plug |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus in preparation |
| Protection rating | IP54, IP65 (shaft seal) |
