Beckhoff AM1033-wJyz

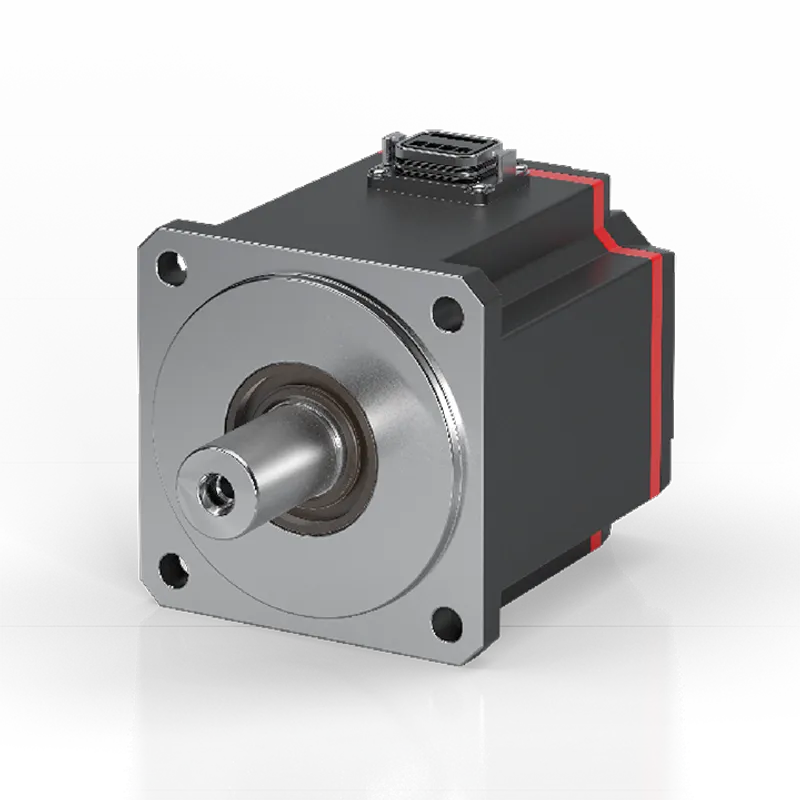

Economy servomotor 3.18 Nm (M0), 1000 W (Pn), I3 (80 mm)

MPN: AM1033-wJyz
Category: AM1033

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AM1033-wJyz?

The AM1033 economy servomotor is suitable for drive solutions that have very high demands in terms of dynamics and performance in the 110…480 V AC voltage range. The motor's standstill torque is 3.18 Nm and it can be combined with the AX1106-1xxx

Specifications

Motor type	permanent magnet-excited three-phase synchronous motor
Standstill torque	3.18 Nm
Nominal voltage	110…480 V AC
Rated torque	3.18 Nm
Peak torque	10.3 Nm
Rated speed	3000 min-1
Rated power	1.00 kW
Standstill current	6.90 A
Peak current	24.0 A
Torque constant	0.461 Nm/A
Motor feedback	OCT, single-turn or multi-turn absolute encoder, electronic nameplate
Cooling	convection
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus in preparation
Protection rating	IP54, IP65 (shaft seal)
Design form	flange-mounted according to IM B5, IM V1, IM V3
Material	aluminum
Coating/surface	CDC, black, similar to RAL9005
Motor length without shaft (without brake)	111.5 mm
Motor length without shaft (with brake)	136.5 mm
